Dielectric Mirror, Laser Line, 152.4 mm, λ/10, 1030-1090nm

Borofloat 33 Laser Line Dielectric Mirrors

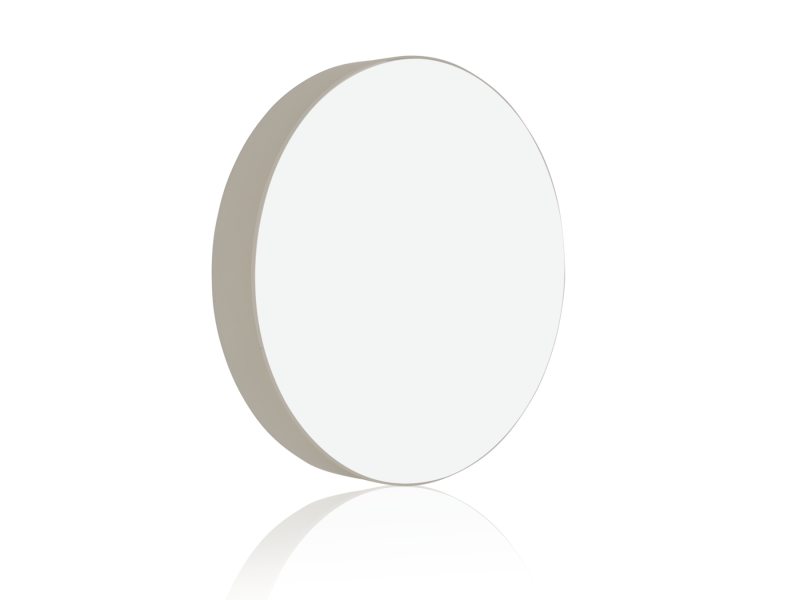

The 60D20DM.10 Laser Line Dielectric mirror is a highly efficient reflector optimized for a narrow 1030 to 1090 nm wavelength range. This 6 inch (152.4 mm) diameter mirror is made from a 23.5 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The DM.10 coating is designed for use with low-power Nd:YAG lasers and has a center wavelength of 1064 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 20-10 surface quality.

Specifications

Technical Specs

Wavelength Region
IR
Wavelength Range
1030-1090 nm
Mirror Shape
Round
Diameter
152.4 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
DM.10
Reflectivity
R_s,R_p>99% @ 1030-1090 nm
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
60D20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
23.5 mm
Thickness Tolerance
±0.38 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.51–1.52 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm² CW, 4 J/cm² for 10 nsec pulses @ 1064 nm

Wavelength Region
IR
Wavelength Range
1030-1090 nm
Mirror Shape
Round
Diameter
152.4 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
DM.10
Reflectivity
R_s,R_p>99% @ 1030-1090 nm
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
60D20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
23.5 mm
Thickness Tolerance
±0.38 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.51–1.52 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm² CW, 4 J/cm² for 10 nsec pulses @ 1064 nm

Resources & Downloads

Other

60D20DM.10 RoHS Certificate(265 kB, PDF)
DM.10 Raw Data.xlsx(66.8 kB, XLSX)
