Sorry, this product is no longer offered for sale.
Aspheric Lens Kit, 600-1050 nm Antireflection Coating

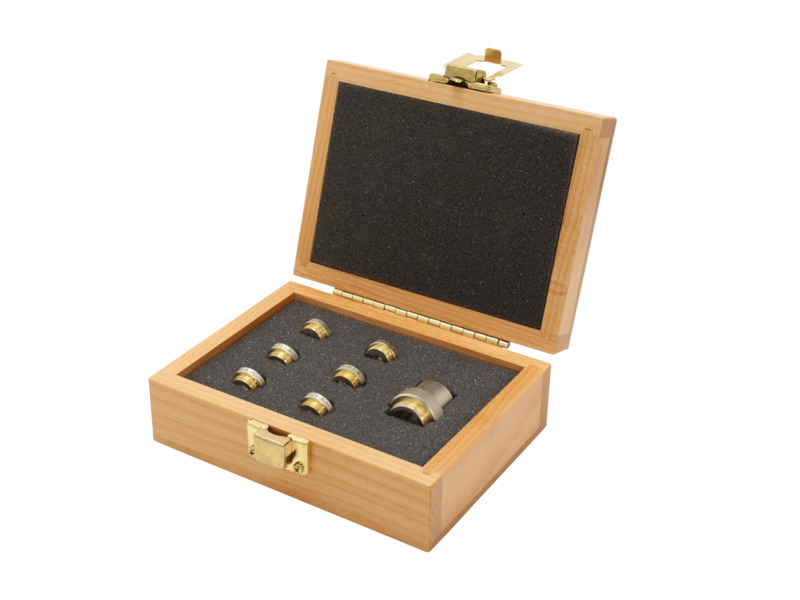

The Model 5720-B kit contains six lenses mounted in threaded holders and a Model 5709 RMS-threaded adapter for mounting the lenses as microscope objectives. The compact glass plano-convex aspheric lens is a convenient, high-quality alternative to microscope objectives and is AR coated for the wavelength range of 600 to 1050 nm.
Resources & Downloads
Other
570002-NF RoHS Certificate(264.5 kB, PDF)
2D Product Drawings
5709a-Drawing(149.8 kB, PDF)
Related Products
Included in the Kit
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | 5721-B-HAspheric Objective Lens, 60x, 2.8 mm EFL, 600-1050 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5722-B-HAspheric Objective Lens, 40x, 4.5 mm EFL, 600-1050 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5723-B-HAspheric Objective Lens, 30x, 6.2 mm EFL, 600-1050 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5724-B-HAspheric Objective Lens, 20x, 8.0 mm EFL, 600-1050 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5725-B-HAspheric Objective Lens, 16x, 11.0 mm EFL, 600-1050 nm | 2 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5726-B-HAspheric Objective Lens, 10x, 15.3 mm EFL, 600-1050 nm | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 5709Asphere Adapter, RMS Threaded | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
