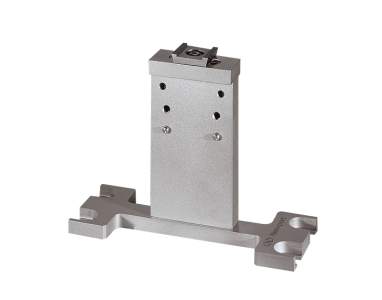

Fixed Platform, Narrow Profile T-Stand, 562 Series

ULTRAlign Fiber Alignment Accessories

Specifications

  • Maximum Travel
    12.7 mm
  • Load Capacity
    156 N
  • Angular Deviation
    <100 µrad
  • Material
    Steel
  • Bearings
    Crossed-Roller
  • Optical Axis Height
    98.4 mm
