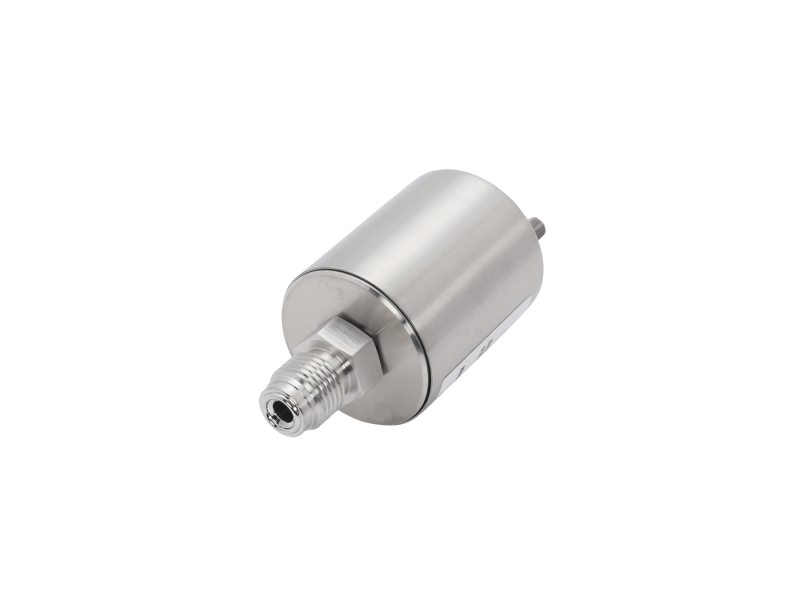

Absolute Pressure Switch, Single-Ended, 1000 Torr, 4 VCR Male, DB9


Absolute Pressure Switch, Single-Ended, 1000 Torr, 4 VCR Male, DB9
Model: 51B13TCA2BA200
Specifications
- TypePressure Switch
- Measurement TypeAbsolute
- ConfigurationSingle-ended
- Full Scale Pressure Range1000 Torr
- Accuracy±0.5% of Full Scale (±temperature coefficient)
- Temperature Coefficiant±0.07% of Full Scale/°C
- Operating Temperature Range0 - 50°C
- Volume3.3 cc
- Overpressure Limit2 × Full Scale or 45 psia, whichever is greater
- Exposed Materialsnconel and 316L Stainless Steel
- Relay ModeEnergizes below the set point
- Response Time<20 msec
- Relay Contact RatingSPDT (isolated) 1 Amp @ 30 VDC resistive
- Trip Point Range50 to 1000 Torr
- Trip Point Dead Band30 Torr
- Power Requirements20-30 VDC
- Electrical Connector9-pin type D male
- Fitting Type4 VCR male
- CE CertifiedYes
