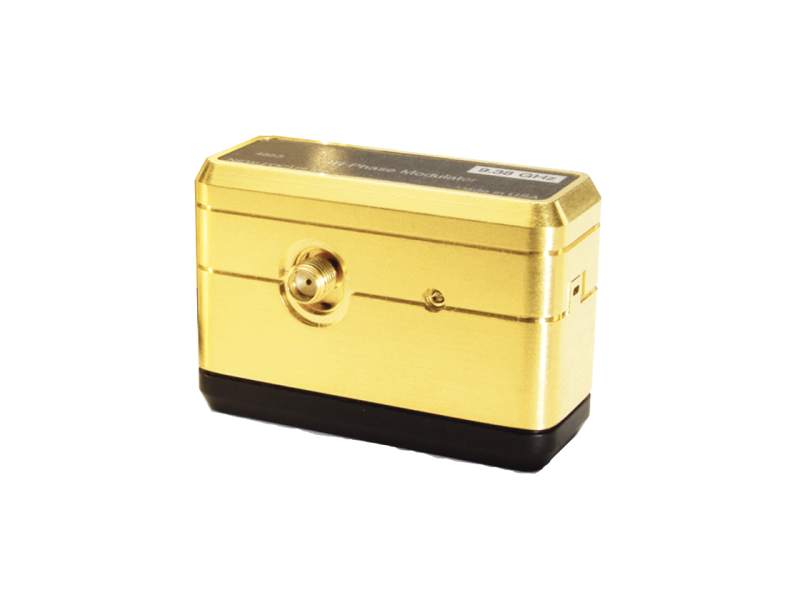

Resonant Phase Modulator, 9.2 GHz, 360-500 nm, 8-32 and M4
The 4855-05 Resonant Phase Modulator is for 360 to 500 nm UV-Visible applications requiring resonant frequencies of 9.2 GHz. It is designed so the microwave phase velocity and optical group velocity through the crystal are matched. It is the perfect tool for atom trapping and cooling experiments involving cesium and rubidium because their resonant frequencies correspond to the ground-state energy splitting of these atoms. 8-32 and M4 mounting holes.
Specifications
- TypeResonant Phase Modulator
- Wavelength Range360-500 nm
- MaterialMgO:LiNbO3
- Operating Frequency9.2 GHz
- Aperture1x2 mm
- VSWR<1.5
- Maximum Input Power0.1 W/mm2 @ 364 nm
- Maximum RF Power3 W
- Maximum V29 V @ 364 nm
- RF ConnectorSMA
- Input Impedance50 Ω
- RF Bandwidth0.5% freq.
- Modulation Depth0.11 rad/V @ 364 nm
