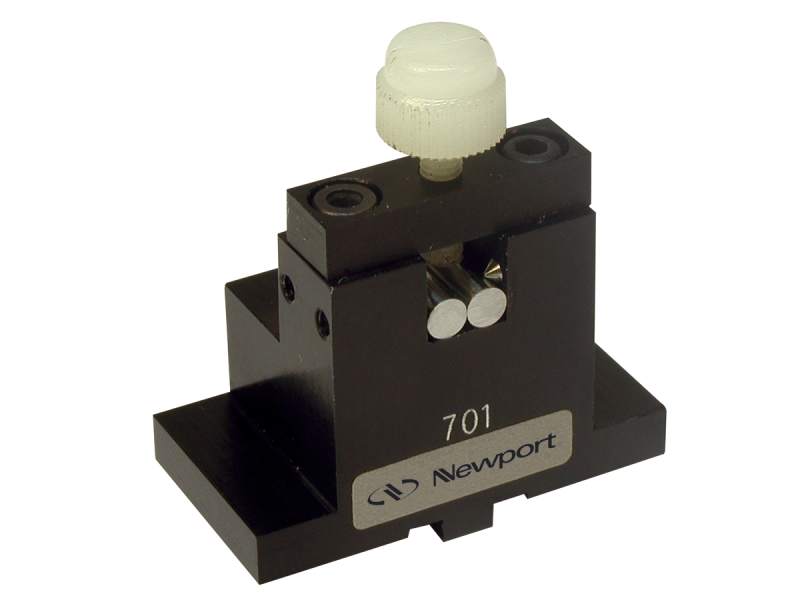

Ferrule Fiber Holder, 1 to 2 mm Diameter, 466A Series

Model: 466A-701

$399.00

In Stock

Compare

Add to List

Product Series Overview

Flexure Fiber Alignment Stage Accessories

The 466A-701 Fiber Ferrule Holder holds optical fibers terminated with a 1 to 2 mm cylindrical ferrule. It can also be used to hold GRIN lenses. A V-groove is formed by two stainless steel rods 9 mm long. Nylon clamp screw avoid damage to the component being held. Compatible with the 466A Series Flexure Stages.

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

466A-701-270 (102.2 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
466A-154 Clamp Set, 466A Stage, Inc. 2 Clamps, 2 Screws & Allen Wrench	IMPERIAL	In Stock	$32.00
SK-A Socket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805	UNIVERSAL	In Stock	$132.00
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$20.00
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$39.00
TA-M6Q20-10 Thread Adaptor, M6 Male to 1/4-20 Male, pack of 10	UNIVERSAL	In Stock	$42.00

Similar

Description	Compatibility	Avail.	Price

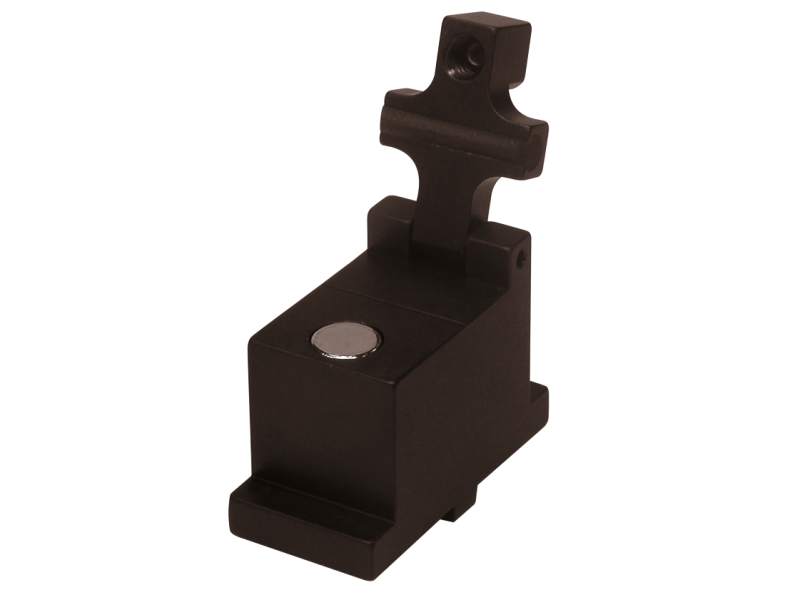

466A-711 Bare Fiber Holder, Single Arm, Magnetic, 466A Series	UNIVERSAL	In Stock	$383.00
466A-709 Bare Fiber Holder, Single Arm, 466A Series	UNIVERSAL	In Stock	$421.00

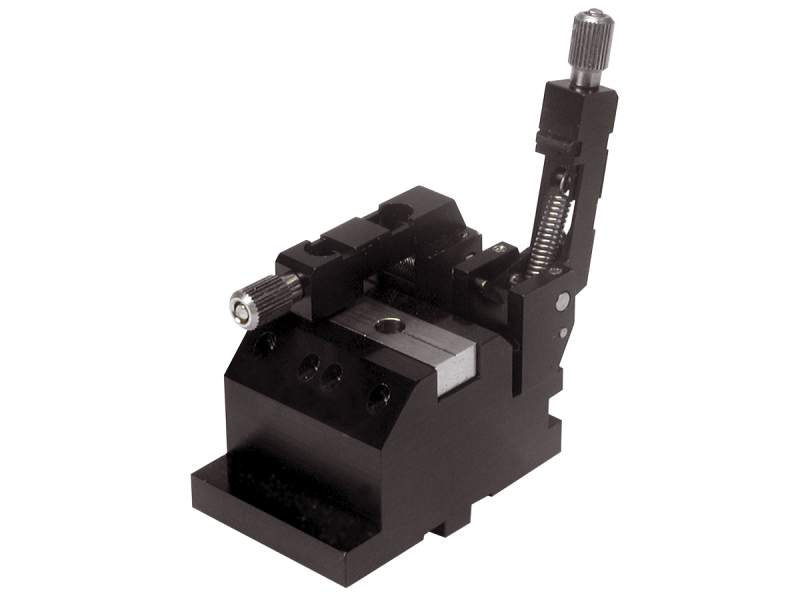

466A-710 Bare Fiber Holder, Dual Arm, 466A Series	UNIVERSAL	In Stock	$583.00

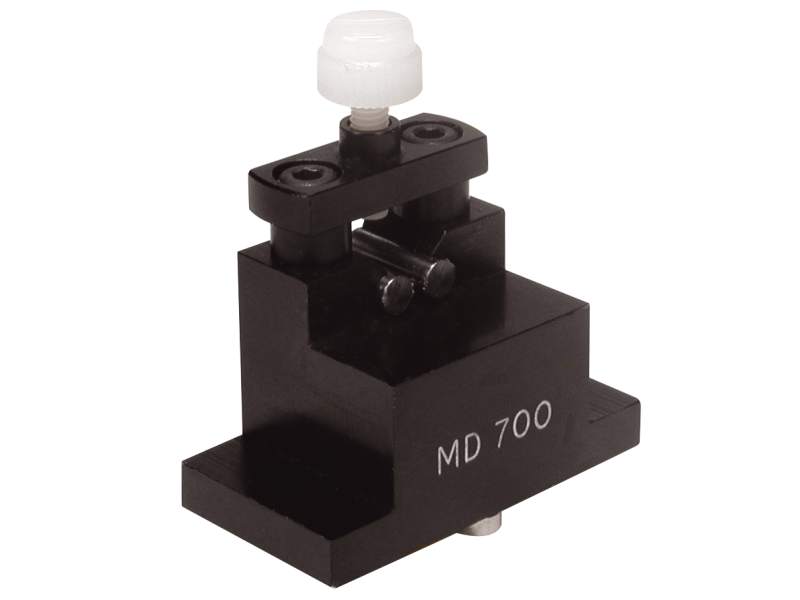

466A-700 Ferrule Fiber Holder, 2 to 4.5 mm Diameter, 466A Series	UNIVERSAL	In Stock	$434.00
466A-735 Optical Fiber holder, FC Connector, 466A Series	UNIVERSAL	In Stock	$439.00

Compatible

Description	Compatibility	Avail.	Price
466A-153 Component Plate, 466A Series	UNIVERSAL	In Stock	$28.00
466A-752 Universal Base, 466A Series	UNIVERSAL	In Stock	$487.00
466A-LH Fiber Alignment Stage, Left-handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	In Stock	$1,340.00
466A-147 Large Fixed Bracket, Slot Length 60mm, 466A	IMPERIAL	In Stock	$83.00
466A Fiber Alignment Stage, Right-Handed, Flexure, 2 mm XYZ Travel, 6-32	IMPERIAL	In Stock	$1,340.00
