Sorry, this product is no longer offered for sale.

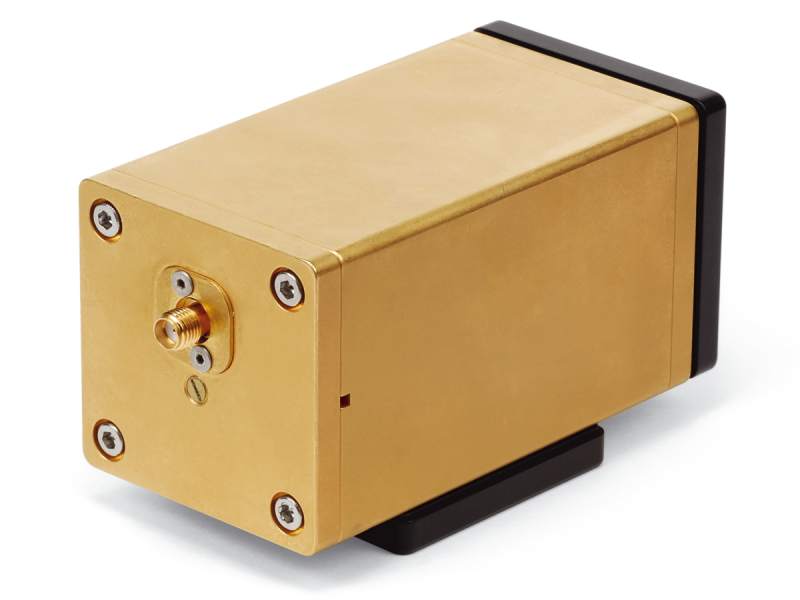

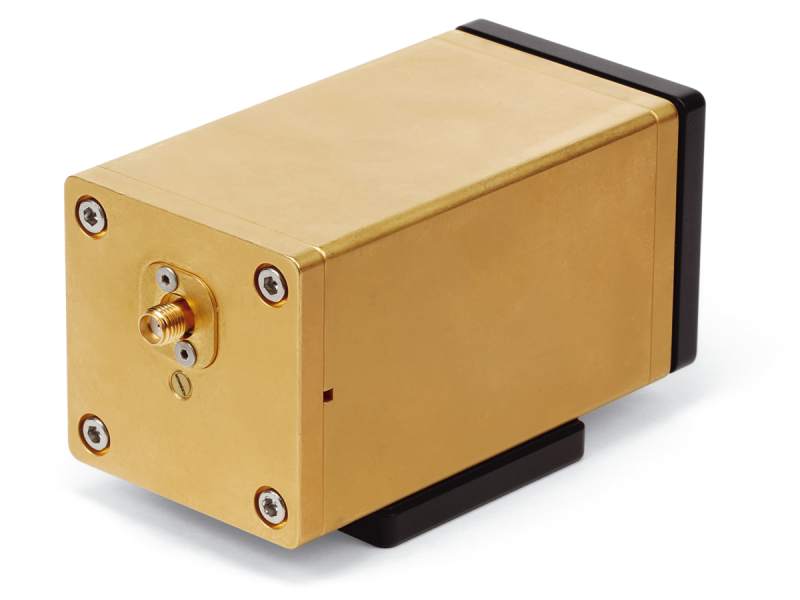

Resonant Phase Modulator, High-Efficiency, KTP, 500-900 nm, 8-32 & M4
The 4461 High-Efficiency Resonant Phase Modulator incorporates a patent-pending design to achieve twice the efficiency over our popular standard designs. This 500-900 nm, KTP, 0.6 to 2.0 GHz modulator has low insertion losses and efficient phase modulation with extremely low unwanted amplitude modulation, this new line of phase modulators is ideal for a wide variety of demanding applications. Using these modulators is easy, simply pass the beam through pre-aligned mechanical apertures for the optimal optical performance. 8-32 and M4 mounting holes.
Specifications
- TypeResonant Phase Modulator
- Wavelength Range500-900 nm
- MaterialKTP
- Operating Frequency0.6 - 2.0 GHz
- ApertureØ2 mm
- VSWR<1.2
- Maximum Input Power10 W/mm2 @ 532 nm
- Maximum RF Power4 W
- Maximum V16.5 - 33.5 V @ 532 nm
- RF ConnectorSMA
- Input Impedance50 Ω
- RF Bandwidth0.5% freq.
- Modulation Depth0.094 - 0.19 rad/V @ 532 nm
