Sorry, this product is no longer offered for sale.

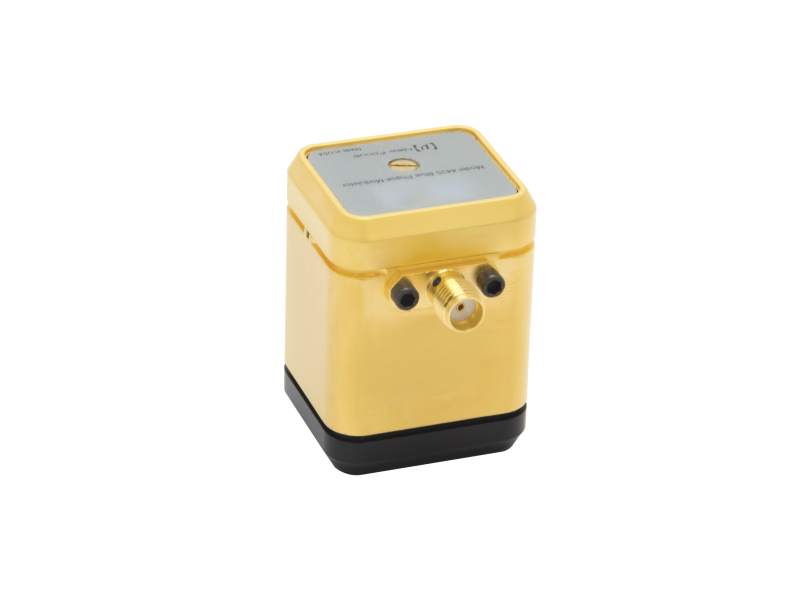

Resonant Phase Modulator, 2.5-4.6 GHz, 500-900 nm, 8-32 and M4

The 4431-02 Resonant Phase Modulator is for 500 to 900 nm visible applications requiring resonant frequencies from 2.5 to 4.6 GHz. It consists of an electro-optic crystal in a resonant microwave cavity to ensure efficient phase modulation and low drive-voltage requirements. A tuning slug allows manual adjustment of the resonant frequency over a 100 MHz range. 8-32 and M4 mounting holes.

Specifications

Technical Specs

Type
Resonant Phase Modulator
Wavelength Range
500-900 nm
Material
MgO:LiNbO₃
Operating Frequency
2.5 - 4.6 GHz
Aperture
Ø1 mm
VSWR
<1.5
Maximum Input Power
2 W/mm² @ 532 nm
Maximum RF Power
4 W

Maximum V
24.0 - 42.0 V @ 532 nm
RF Connector
SMA
Input Impedance
50 Ω
RF Bandwidth
0.5% freq.
Modulation Depth
0.075 - 0.13 rad/V @ 532 nm
