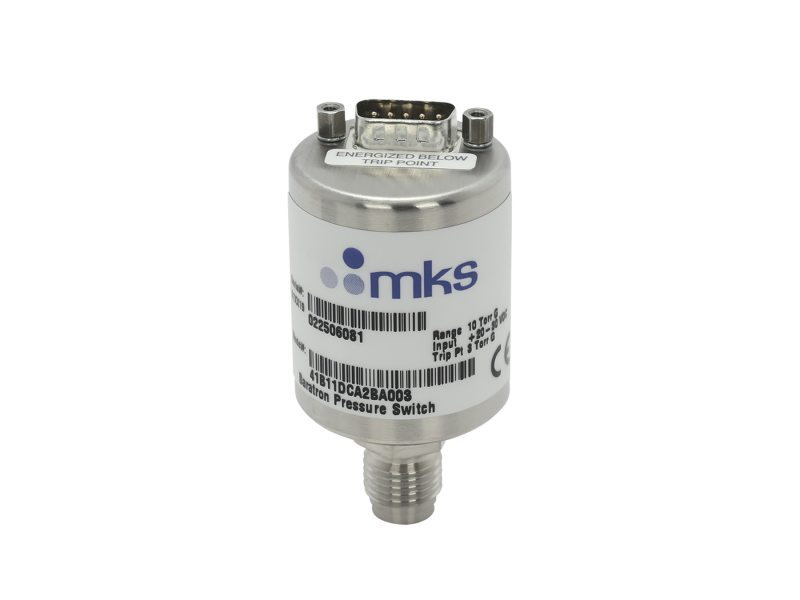

Gauge Pressure Switch, Single-Ended, 10 Torr, 4 VCR Male, DB9
The 41B11DCA2BA003 Pressure Switch is ranged for 10 Torr, has a 4 VCR-style male fitting, 20-30VDC Input, a 9-Pin Type "D" male subminiature electrical connector, energizes with pressure below the set point, and accuracy of 0.5% of Full scale. It offers accurate and reliable protection for vacuum vacuum/pressure processes. Designed for applications where a DC signal output is not required, these switches provide relay outputs that are readily interfaced with alarms, valve actuators, computers, process controllers, load locks and other protection devices.
Specifications
Type
Pressure Switch
Measurement Type
Differential
Configuration
Single-ended
Full Scale Pressure Range
10 Torr
Accuracy
±0.5% of Full Scale (± temperature coefficient)
Temperature Coefficiant
±0.07% of Full Scale/°C
Operating Temperature Range
0 - 50°C
Volume
3.3 cc
Overpressure Limit
2 x Full Scale or 45 psia, whichever is greater
Exposed Materials
Inconel and 316L stainless steel
Relay Mode
Energizes with pressure below the set point
