Gold Mirror, Borofloat, 101.6 mm, λ/10, 650-20,000 nm

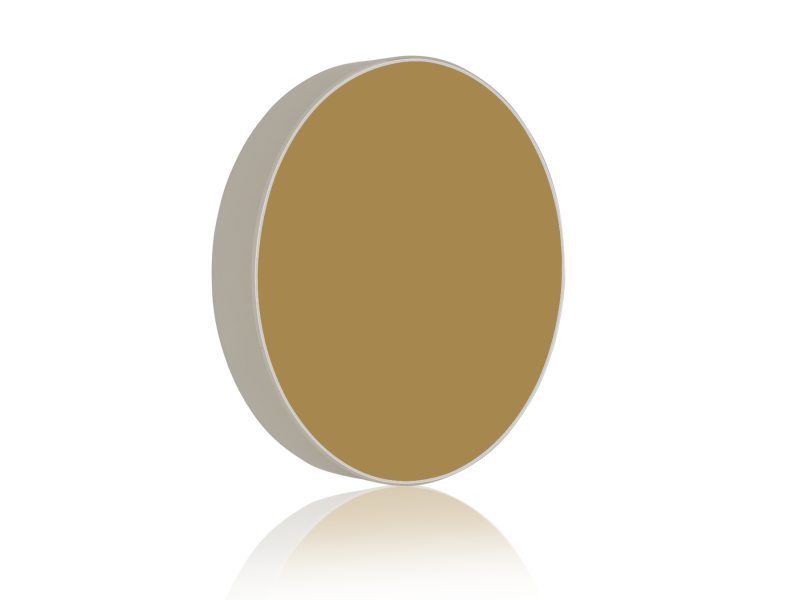

The 40D20ER.4 Broadband Gold Mirror is an excellent general purpose, broadband reflector. This 101.6 mm (4.0 inch) diameter mirror is made from a 17.7 mm thick Borofloat® 33 substrate which is coated with the ER.4 gold coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. The 40D20ER.4 has an average reflectivity greater than 96% from 650–1700 nm and greater than 98% from 1.7–20 μm. This mirror has a λ/10 surface flatness and a 15-5 surface quality.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
650-20000 nm
Mirror Shape
Round
Diameter
101.6 mm
Mirror Size
Ø101.6 mm
Thickness
17.7 mm
Material
Borofloat® 33
Coating Type
Protected Gold
Coating Code
ER.4
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
40D20

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>96%, R_min>92% @ 650-1700 nmR_avg>98%, R_min>96% @ 1.7-20 µm
Damage Threshold
0.5 J/cm² with 10 ns pulses at 1064 nm, 20Hz
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
Broadband
Wavelength Range
650-20000 nm
Mirror Shape
Round
Diameter
101.6 mm
Mirror Size
Ø101.6 mm
Thickness
17.7 mm
Material
Borofloat® 33
Coating Type
Protected Gold
Coating Code
ER.4
Surface Quality
20-10 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
40D20

Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>96%, R_min>92% @ 650-1700 nmR_avg>98%, R_min>96% @ 1.7-20 µm
Damage Threshold
0.5 J/cm² with 10 ns pulses at 1064 nm, 20Hz
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
