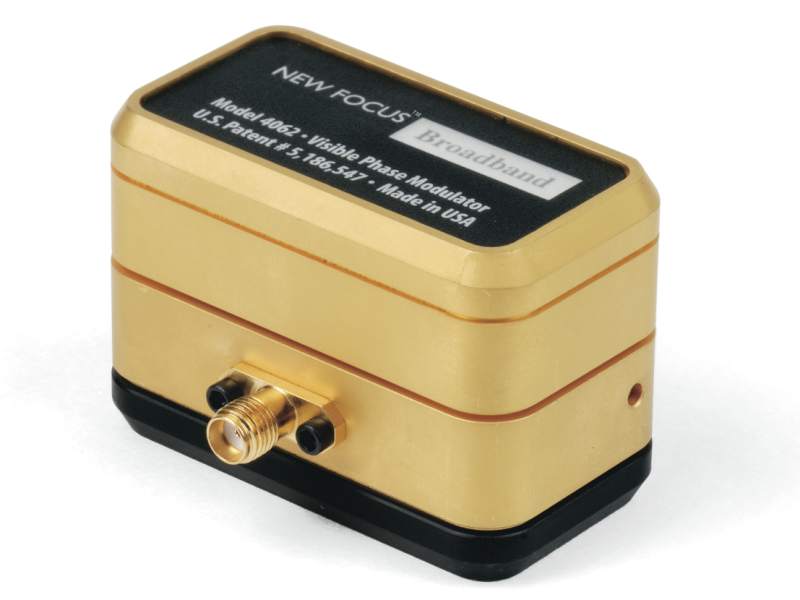

Phase Modulator, Broadband, 500-900 nm, 0.1-250 MHz, KTP, 8-32 & M4
The 4062NF KTP Broadband Phase Modulator is a 500 to 900 nm, 0.1 to 250 MHz EOM offering increased optical damage thresholds of more than five times that of our LiNbO3 modulators. With patented and patent-pending designs, these electro-optic modulators achieve high efficiency for high modulation depths, too. As with all of our modulators, these modulators have low insertion losses and extremely low unwanted residual amplitude modulation. And, using them is easy: simply pass the beam through pre-aligned mechanical apertures for the optimal optical performance. 8-32 and M4 mounting holes.
Specifications
- TypeBroadband Phase Modulator
- Wavelength Range500-900 nm
- MaterialKTP
- Operating Frequency0.1-250 MHz
- ApertureØ2 mm
- VSWRNA
- Maximum Input Power10 W/mm2 @ 532 nm
- Maximum RF Power10 W
- Maximum V115 V @ 532 nm
- RF ConnectorSMA
- Input Impedance10 pF
- RF Bandwidth250 MHz
- Modulation Depth26 mrad/V @ 532 nm
Resources & Downloads
Manuals
400X and 406X Phase Modulators User Manual(893 kB, PDF)
