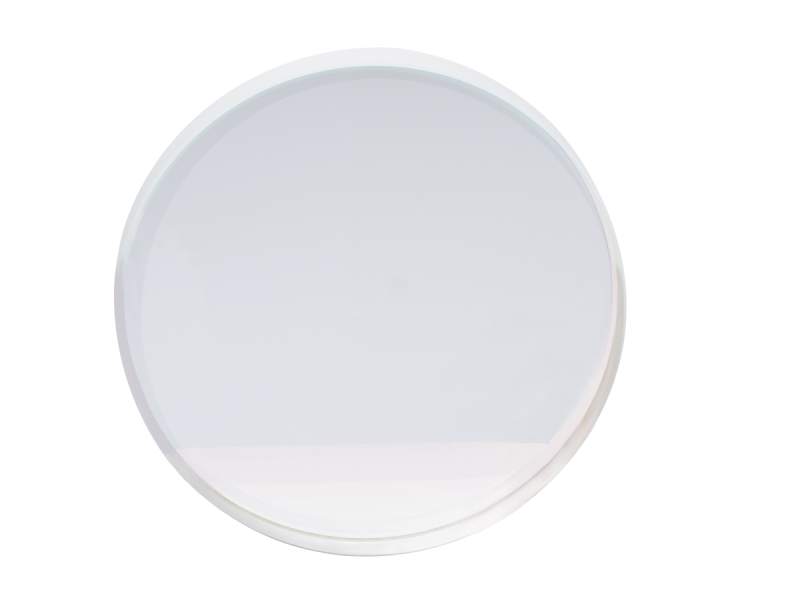

Broadband Dielectric Beamsplitter, UVFS, 76.2 mm, λ/10, 700-950 nm

The 30Q20BS.2 Broadband Dielectric Beamsplitter is made of fused silica, 76.2 mm in diameter, 12.45 mm thick, with a surface flatness of λ/100, and coated for 700-950 nm. Our broadband dielectric beamsplitters are designed to provide general purpose laser beam splitting and combining for visible through near infrared applications. Each coating is essentially achromatic across a wide spectral band so that a single optic will work for the entire range of a particular tunable laser, for several laser diode wavelengths, or for most visible laser wavelengths.

Specifications

Technical Specs

Wavelength Range
700-950 nm
Diameter
76.2 mm
Material
UV Grade Fused Silica
Coating Code
BS.2
Antireflection Coating
NC.2
Angle of Incidence
45°

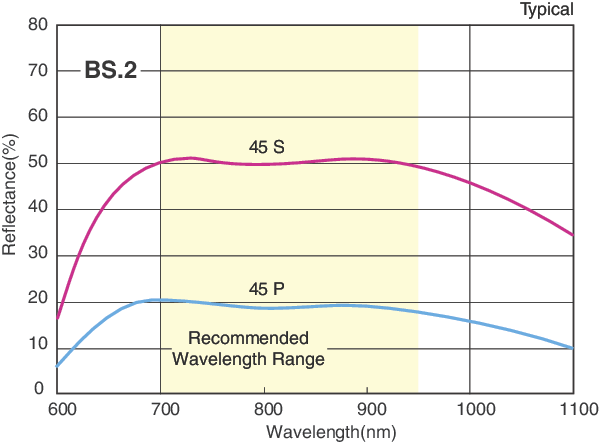

Reflection
R_s = 50 ±5%, R_p ≤R_s
Damage Threshold
500 W/cm² CW, 7 J/cm² for 10 nsec pulses, typical @ 780 nm
Surface Flatness
λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm

Thickness
12.5 mm
Thickness Tolerance
-0.38/+0.8 mm
Wedge
30 ±15 arc min
Clear Aperture
> central 80% of diameter
Chamfers
0.38-1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
700-950 nm
Diameter
76.2 mm
Material
UV Grade Fused Silica
Coating Code
BS.2
Antireflection Coating
NC.2
Angle of Incidence
45°
Reflection
R_s = 50 ±5%, R_p ≤R_s
Damage Threshold
500 W/cm² CW, 7 J/cm² for 10 nsec pulses, typical @ 780 nm
Surface Flatness
λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm

Thickness
12.5 mm
Thickness Tolerance
-0.38/+0.8 mm
Wedge
30 ±15 arc min
Clear Aperture
> central 80% of diameter
Chamfers
0.38-1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

BS-1-DWG-S(72.2 kB, PDF)

Other

30Q20BS.2 RoHS Certificate(267.1 kB, PDF)
30Q20BS.2_ROHS2-2021.pdf(279.1 kB, PDF)
BS.2 Raw Data.xlsx(187.1 kB, XLSX)

Related Products

Compatible

Description	Compatibility	Avail.	Price

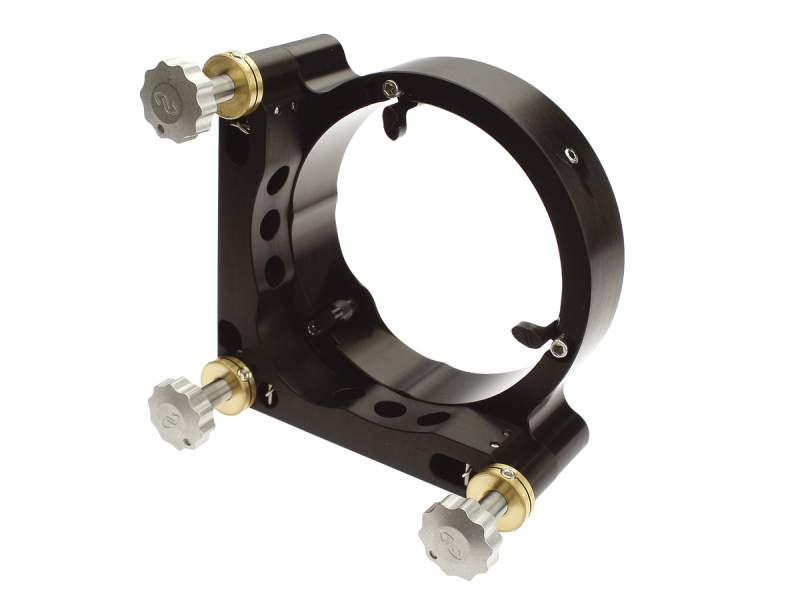

U300-AC3KMirror Mount, ULTIMA^®, Center, 3.0 in., 3 Locking Knob Adjustment	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$594

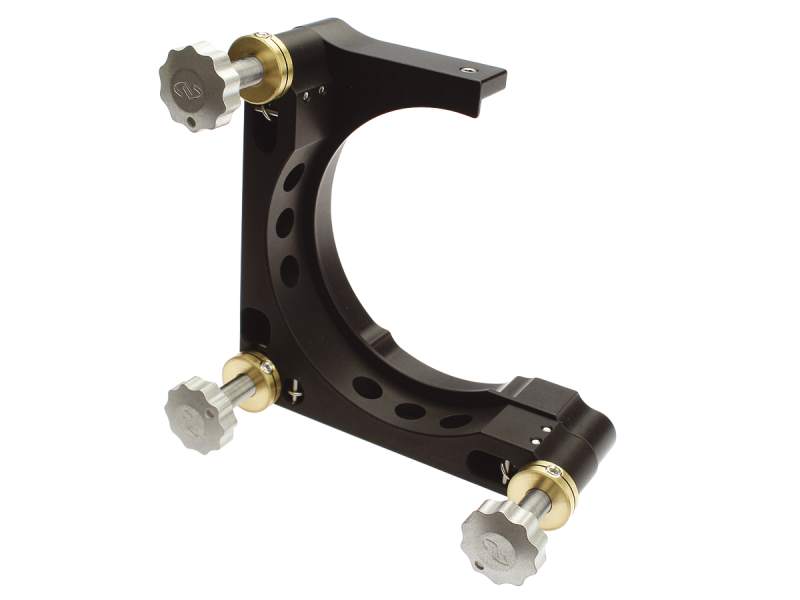

U300-A3KMirror Mount, ULTIMA^®, Clear Edge, 3.0 in., 3 Locking Knobs	UNIVERSAL	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$359

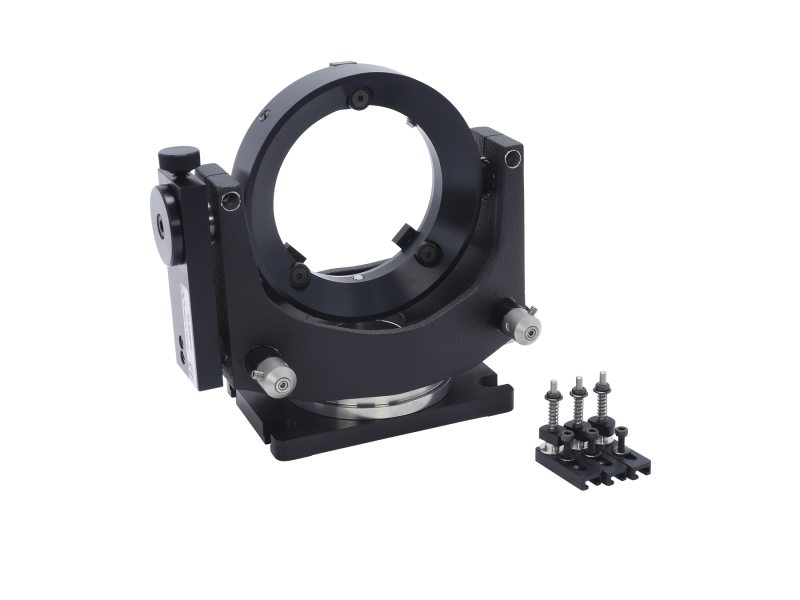

SL8ABHCGimbal Optical Mount, Ø3.15 in., 2 BHC Locking Allen-Key Screws	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,523

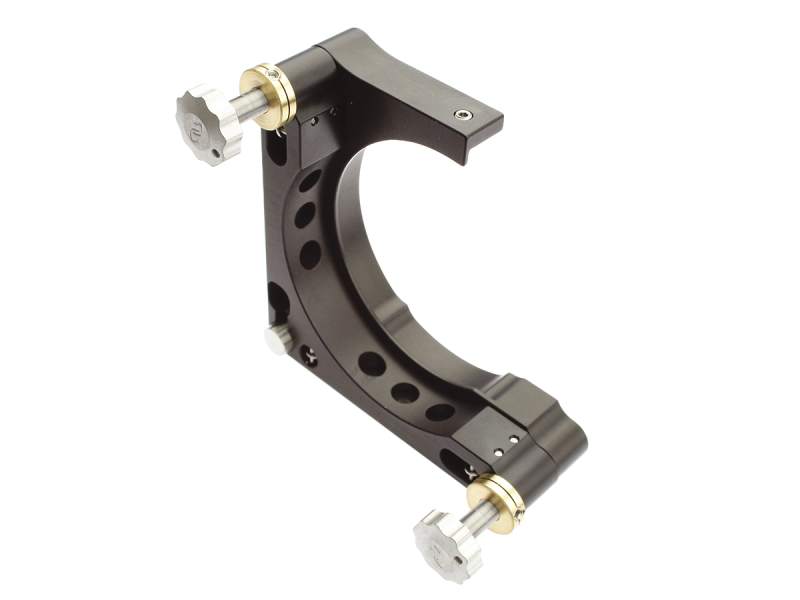

U300-A2KMirror Mount, ULTIMA^®, Clear Edge, 3.0 in., 2 Locking Knobs	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$310

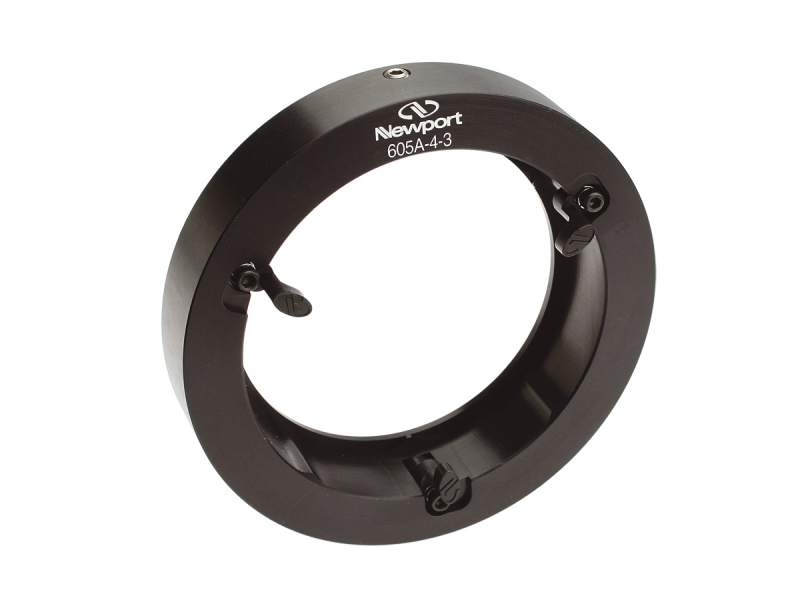

605A-4-3Optical Diameter Adapter, 605-4 Gimbal Mount, 4.0 to 3.0 in.	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$220
