Broadband Dielectric Beamsplitter, UVFS, 76.2 mm, λ/10, 480-700 nm

The 30Q20BS.1 Broadband Dielectric Beamsplitter is made of fused silica, 76.2 mm in diameter, 12.45 mm thick, with a surface flatness of λ/100, and coated for 480-700 nm. Our broadband dielectric beamsplitters are designed to provide general purpose laser beam splitting and combining for visible through near infrared applications. Each coating is essentially achromatic across a wide spectral band so that a single optic will work for the entire range of a particular tunable laser, for several laser diode wavelengths, or for most visible laser wavelengths.

Specifications

Technical Specs

Wavelength Range
480-700 nm
Diameter
76.2 mm
Material
UV Grade Fused Silica
Coating Code
BS.1
Antireflection Coating
NC.1
Angle of Incidence
45°

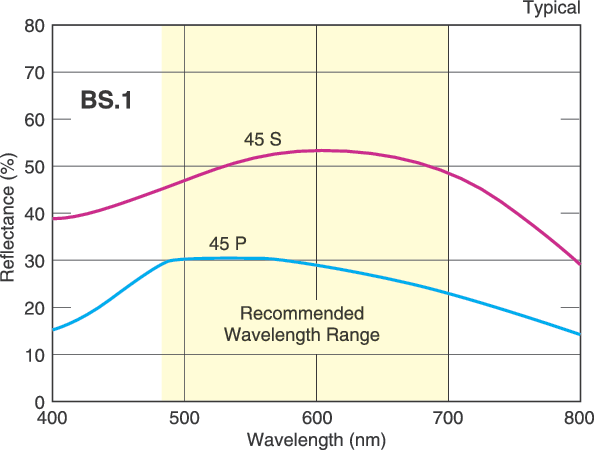

Reflection
R_s = 50 ±5%, R_p ≤R_s
Damage Threshold
500 W/cm² CW, 5 J/cm² for 10 nsec pulses, typical @ 532 nm
Surface Flatness
λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm

Thickness
12.5 mm
Thickness Tolerance
-0.38/+0.8 mm
Wedge
30 ±15 arc min
Clear Aperture
> central 80% of diameter
Chamfers
0.38-1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
480-700 nm
Diameter
76.2 mm
Material
UV Grade Fused Silica
Coating Code
BS.1
Antireflection Coating
NC.1
Angle of Incidence
45°
Reflection
R_s = 50 ±5%, R_p ≤R_s
Damage Threshold
500 W/cm² CW, 5 J/cm² for 10 nsec pulses, typical @ 532 nm
Surface Flatness
λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm

Thickness
12.5 mm
Thickness Tolerance
-0.38/+0.8 mm
Wedge
30 ±15 arc min
Clear Aperture
> central 80% of diameter
Chamfers
0.38-1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

BS-1-DWG-S(72.2 kB, PDF)

Other

30Q20BS.1 RoHS Certificate(267.3 kB, PDF)
30Q20BS.1_ROHS2-2021.pdf(279.5 kB, PDF)
BS.1 Raw Data.xlsx(141 kB, XLSX)

Related Products

Compatible

Description	Compatibility	Avail.	Price
U300-AC3KMirror Mount, ULTIMA^®, Center, 3.0 in., 3 Locking Knob Adjustment	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$594

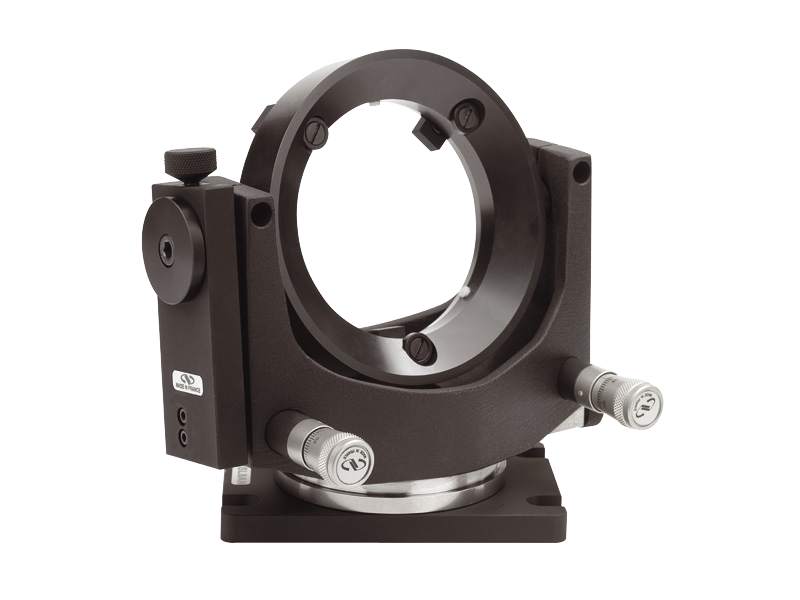

SL8ABMGimbal Optical Mount, Ø3.15 in., 2 BM Micrometers	UNIVERSAL	In Stock	$2,825
U300-AC2KMirror Mount, ULTIMA^®, Center, 3.0 in., 2 Locking Knob Adjustment	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$566

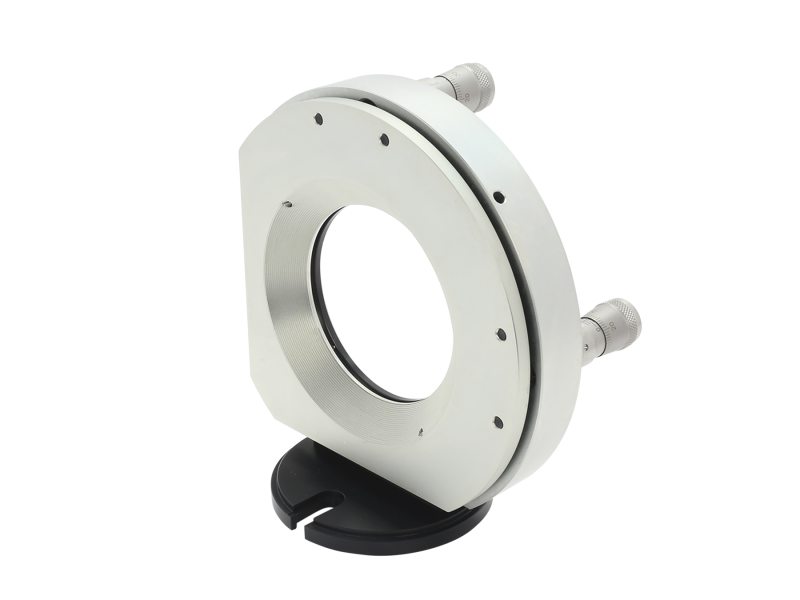

SL76.2BMGimbal Optical Mount, 3.0 in. Diameter, (2) BM Micrometers	UNIVERSAL	Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,916
