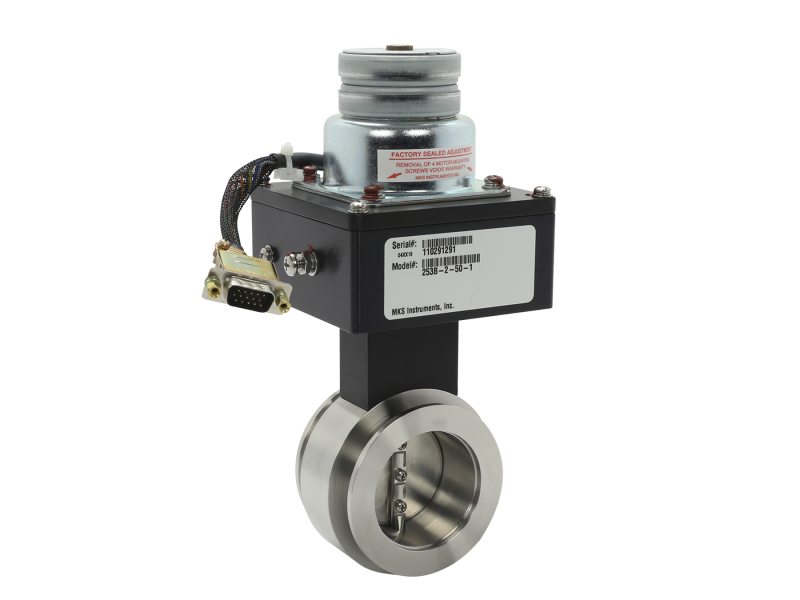

Exhaust Throttle Valve, 1.888 in. ID, NW50 ISO-KF, Flapper O-ring
The 253B-2-50-1 Exhaust Throttle Valve regulates the removal of gas from a processing system. It features a 1.888 inch (48 mm) nominal inside diameter and a size NW50 ISO-KF Flange. A flapper O-ring is included. Its flapper is positioned to modulate gas flow, thereby controlling process pressure. The 253 has a patented non-linear actuator placed between the flapper shaft and the motor drive shaft in order to generate a linear valve transfer characteristic and provide smooth linear pressure control. The Type 253 is available in standard sizes and flange styles, and is compatible with all MKS throttle valve controllers.
