Sorry, this product is no longer offered for sale.

InGaAs Photoreceiver, Femtowatt, 800-1700 nm, 1 mm Diameter, 8-32 / M4

Please note that production of this product is on hold at this time.

The 2153 Femtowatt InGaAs Photoreceiver is ideal when you need the ultimate in low-light-level detection in the 800 to 1700 nm range. When used with a chopper and a lock-in amplifier, these receivers can easily achieve sensitivity levels in the femtowatt range. These receivers provide amazing amounts of gain and yet are easy to use, making the most difficult spectroscopy or fluorescence experiment a snap. 8-32 mounting thread. M4 metric adaptor and tool now included. Connect to a 1 MΩ oscilloscope input.

Specifications

Technical Specs

Optical Input
Free Space
Detector Type
PIN
Detector Material
InGaAs
Detector Diameter
1.0 mm
Wavelength Range
800-1700 nm
Bandwidth (-3 dB)
DC-750 Hz (DC)
30-750 Hz (AC)
Output Connector
Male BNC
Output Impedance
100 Ω
Maximum Conversion Gain
2x10¹¹ V/W
Maximum Transimpedance Gain
2x10¹⁰ V/A (DC Low and AC Low)
2x10¹¹ V/A (AC High)

NEP
23 fW / √Hz
Power Requirements
Internal 9-V battery

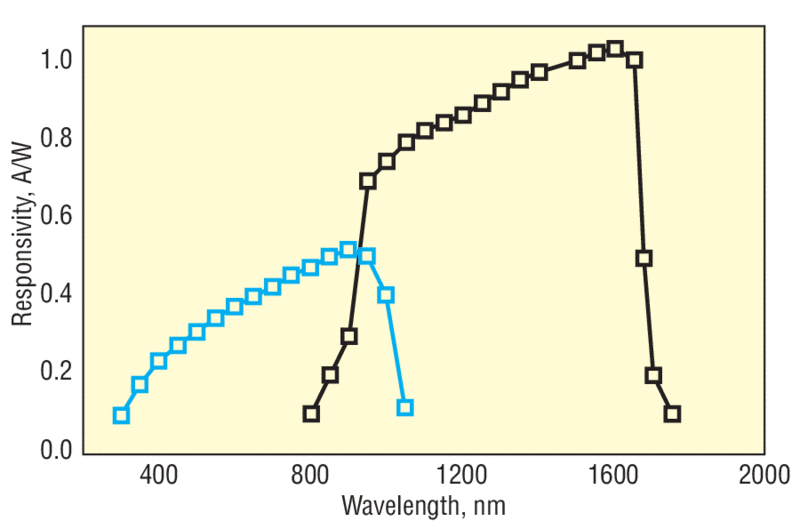

Peak Responsivity
1.0 A/W
Saturation Power
0.25 nW (DC Low and AC Low)
0.025 nW (AC High)
Damage Threshold
10 mW
Operating Temperature Range
10 - 35 °C, < 70% RH
3 dB Bandwidth
DC to 750 Hz

Optical Input
Free Space
Detector Type
PIN
Detector Material
InGaAs
Detector Diameter
1.0 mm
Wavelength Range
800-1700 nm
Bandwidth (-3 dB)
DC-750 Hz (DC)
30-750 Hz (AC)
Output Connector
Male BNC
Output Impedance
100 Ω
Maximum Conversion Gain
2x10¹¹ V/W
Maximum Transimpedance Gain
2x10¹⁰ V/A (DC Low and AC Low)
2x10¹¹ V/A (AC High)

NEP
23 fW / √Hz
Power Requirements
Internal 9-V battery
Peak Responsivity
1.0 A/W
Saturation Power
0.25 nW (DC Low and AC Low)
0.025 nW (AC High)
Damage Threshold
10 mW
Operating Temperature Range
10 - 35 °C, < 70% RH
3 dB Bandwidth
DC to 750 Hz

Resources & Downloads

2D Product Drawings

215x Drawing(103.1 kB, PDF)

Other

215x Photoreceiver RoHS Declaration.pdf(227.9 kB, PDF)

Manuals

90099907 Femtowatt Photoreceiver User Manual Rev A.pdf(1 MB, PDF)
