Interferometer Flat, UVFS, 50.8 mm, 12.7mm Thick, λ/10, 10-5
Interferometer Flat, UVFS, 50.8 mm, 12.7mm Thick, λ/10, 10-5
Model: 20QB20
Product Series Overview

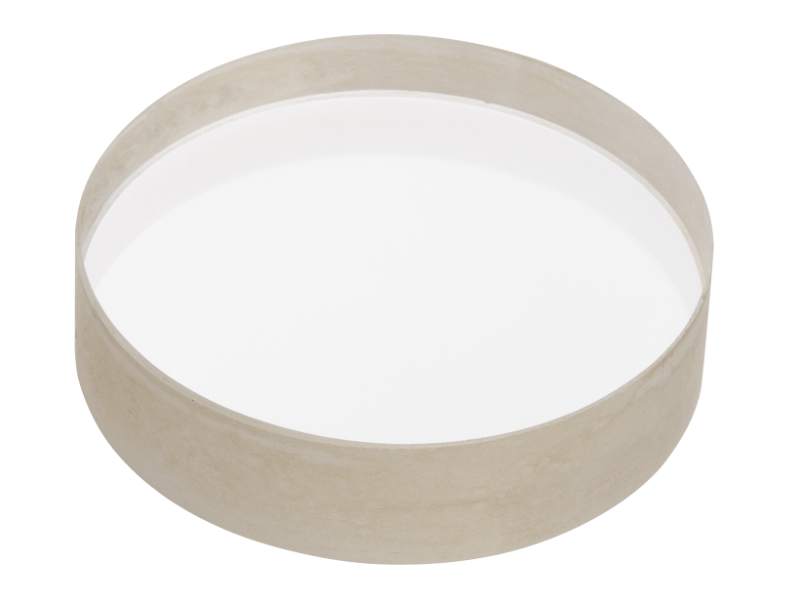

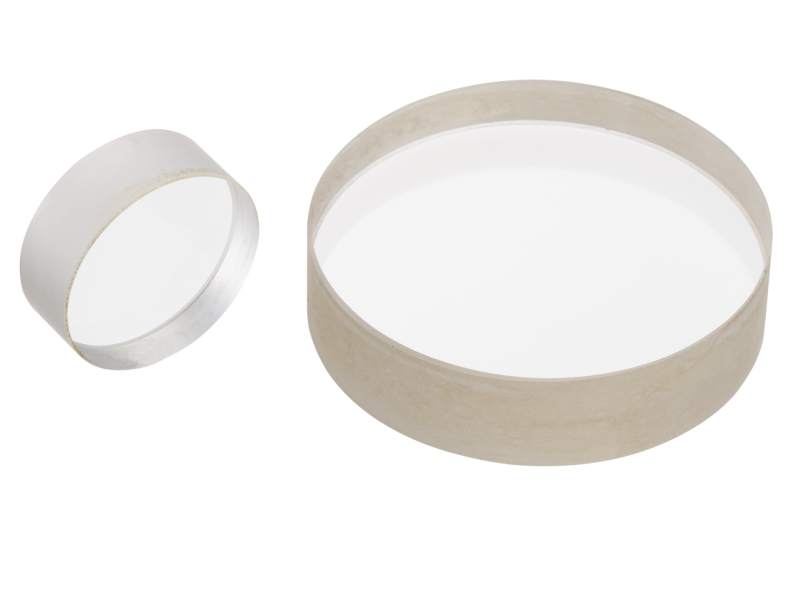

Interferometer FlatsThe 20QB20 Interferometer Flat is ideally suited for use in a laboratory interferometer or as a quality assurance standard. To ensure long-term thermal stability and mechanical accuracy. This 2 inch (50.8 mm) diameter, 12.7 mm thick optic is polished from select UV fused silica. In order to double the utility of the optic, both faces are polished to the same λ/10 figure. Internal fringe patterns are virtually eliminated by a 30 arc min wedge between faces. Surface interferograms, that allow error mapping, are shipped with each flat.
Resources & Downloads
2D Product Drawings
WEDGEDWI-S(71.4 kB, PDF)
Other
20QB20 RoHS Certificate(266.5 kB, PDF) 20QB20_ROHS2-2021.pdf(279.2 kB, PDF)
