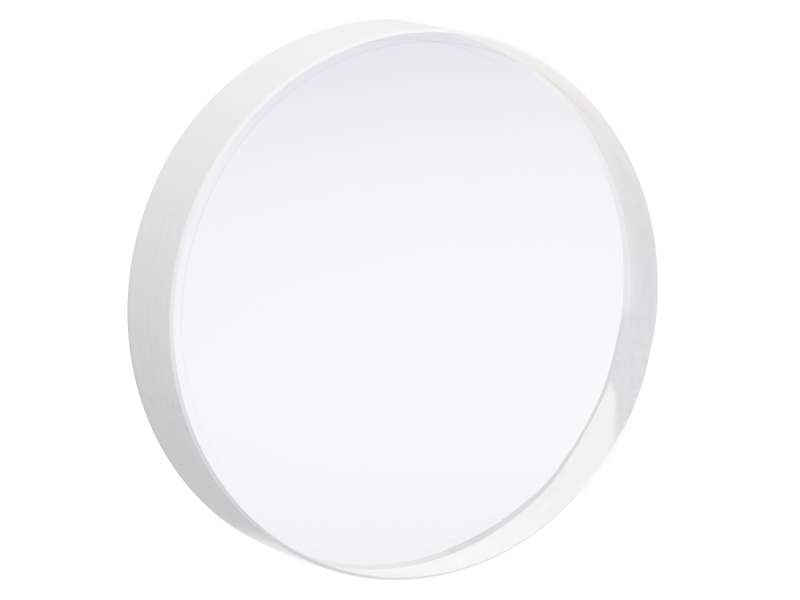

High-Energy Laser Wedged Window, 50.8 mm Diameter, 650-1000 nm

Model: 20Q20XAR.16

High-Energy Laser Wedged Window, 50.8 mm Diameter, 650-1000 nm

Model: 20Q20XAR.16

Technical Specs

  • Diameter
    50.8 mm
  • Material
    UV Grade Fused Silica
  • Antireflection Coating
    650-1000 nm
  • Surface Flatness
    λ/10 @ 632.8 nm
  • Surface Quality
    15-5 scratch-dig
  • Thickness
    9.4 mm
  • Thickness Tolerance
    ±0.38 mm
  • Chamfers
    0.38–1.14 mm face width
  • Cleaning
    Non-abrasive method, acetone or isopropyl alcoholon lens tissue recommended
  • Clear Aperture
    Central 80% of diameter
  • Diameter Tolerance
    +0/-0.13 mm

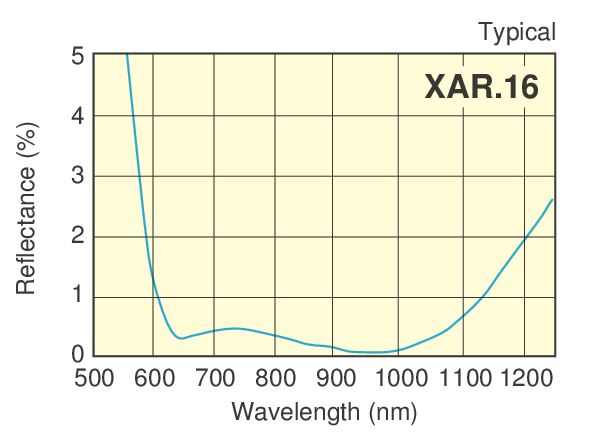

  • Coating Code
    AR.16
  • Wedge
    30 ±15 arc min
  • Damage Threshold
    10 J/cm2 @ 20 nsec pulses, 20 Hz, at 1064 nm, typical
