Longpass Filter, Colored-Glass Alternative, 2x2 in., 385 nm Cut-on
Longpass Filter, Colored-Glass Alternative, 2x2 in., 385 nm Cut-on
Model: 20CGA-385
In Stock
Product Series Overview

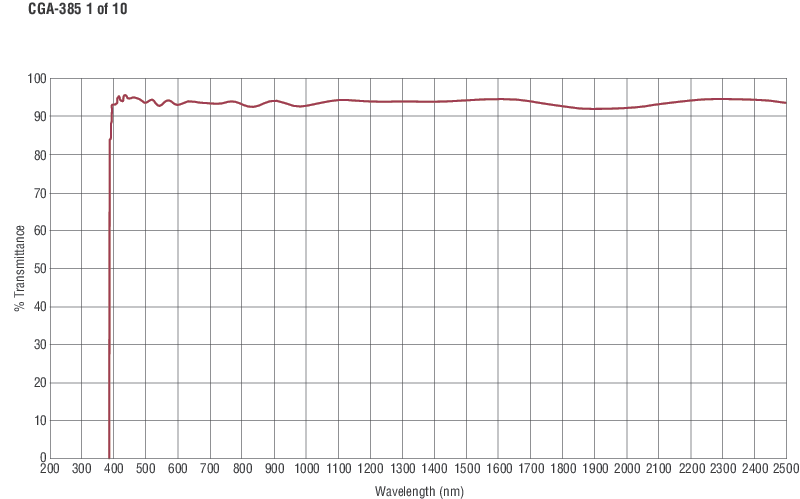

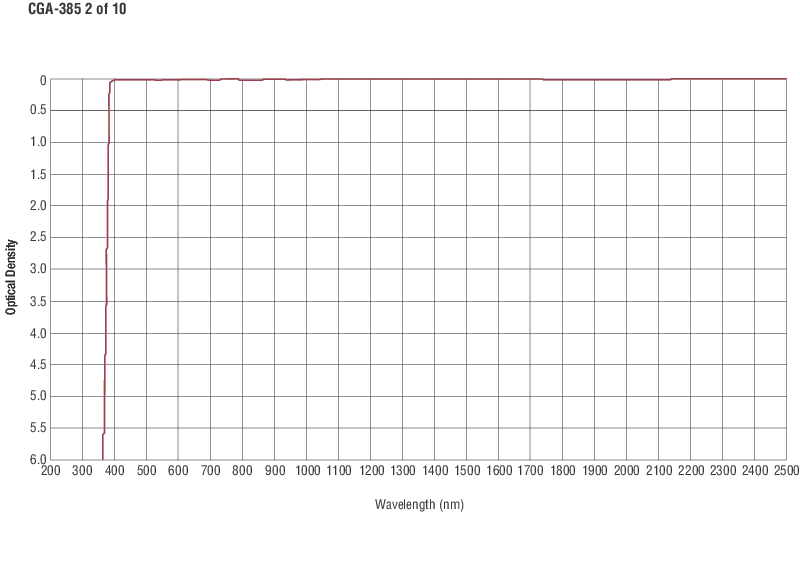

Square Colored Glass Alternative Longpass FiltersThe 20CGA-385 Colored-Glass Alternative Filter is a 2 inch (50.8 mm) square long-pass filter with a 385 ± 5 nm cut-on wavelength. Colored-Glass Alternative filters have a steep transition between the region of transmission and rejection (blocking) that is much steeper than colored glass filters. Colored-Glass Alternative filters have out-of-band rejection ≥OD 5 to 200 nm. Typical transmission is ≥90% average.
Resources & Downloads
Other
20CGA-385 RoHS Certificate(265.1 kB, PDF)
Literature
Colored Glass Alternative Filters Catalog(14.2 MB, PDF)
