Bandpass Filter, 50.8x50.8 mm, 340±2 nm Center, 12±2 nm FWHM

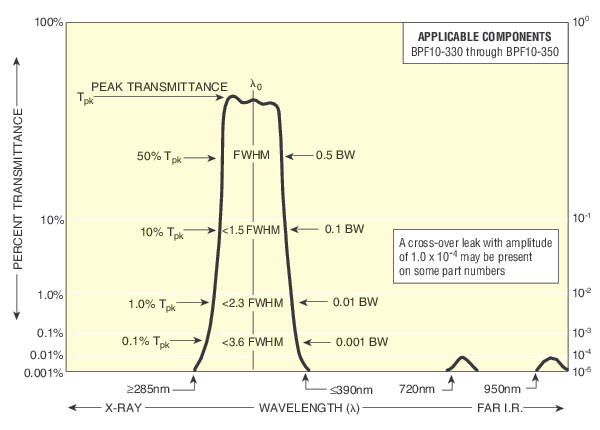

The 20BPF10-340 Bandpass Filter is a 2 x 2 inch (50.8 x 50.8 mm) square bandpass filter with a center wavelength of 340 ± 2 nm and a Full Width Half Max of 12 ± 2 nm. See Curve 6, for transmission graph. Our Bandpass Filters pass a narrow spectral band of UV, visible, or NIR radiation and reject out-of-band wavelengths from the X-ray to the far IR. Applications include spectral radiometry, medical diagnostics, chemical analysis, colorimetry, astronomy, and wherever spectral isolation is required.

Specifications

Technical Specs

Type
Bandpass Filters
Center Wavelength
340 nm
Center Wavelength Tolerance
±2 nm
FWHM
12±2 nm
Effective Index of Refraction
1.5
Size
50.8 x 50.8 mm
Size Tolerance
+0/-0.5 mm
Thickness
0.223 in.
Surface Quality
80-50 scratch-dig

Minimum Peak Transmission
35%
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Clear Aperture
45.5 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.01 to 0.02 nm/°C
Cleaning
See How to Clean Optics

Type
Bandpass Filters
Center Wavelength
340 nm
Center Wavelength Tolerance
±2 nm
FWHM
12±2 nm
Effective Index of Refraction
1.5
Size
50.8 x 50.8 mm
Size Tolerance
+0/-0.5 mm
Thickness
0.223 in.
Surface Quality
80-50 scratch-dig

Minimum Peak Transmission
35%
Humidity Resistance
Per MIL-STD-810E, method 507.3, procedure III, modified to 5 cycles
Clear Aperture
45.5 mm
Temperature Range
-50 to 100°C
Wavelength Shift with Temperature
0.01 to 0.02 nm/°C
Cleaning
See How to Clean Optics

Resources & Downloads

2D Product Drawings

BAND-S(58.2 kB, PDF)

Other

20BPF10-340 RoHS Certificate(264.6 kB, PDF)
20BPF10-340_ROHS2-2021.pdf(281.3 kB, PDF)
