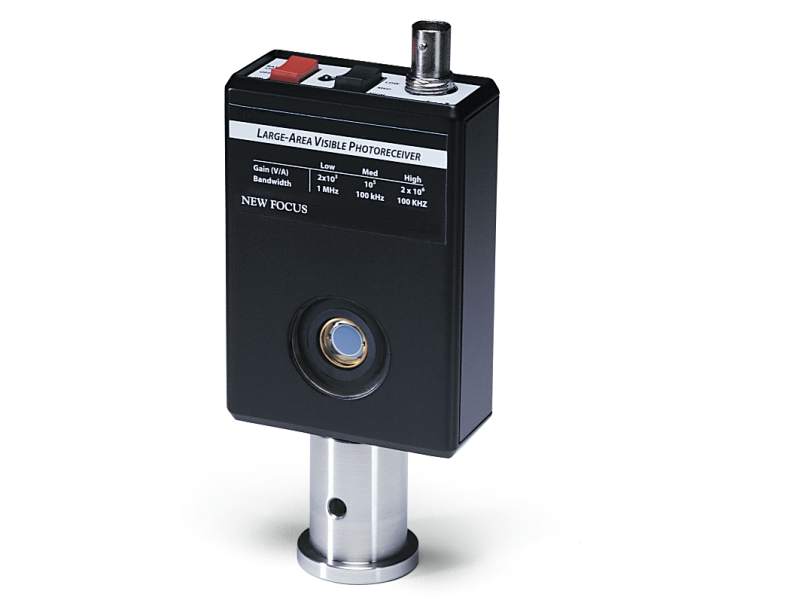

Large Area Optical Receiver, 8 mm Silicon Detector, 400-1070 nm
The 2031 Extra-large Diameter Silicon Optical Receiver allows you to tweak your experiment without worrying about the beam wandering off the detector. Just position the 8 mm diameter, 400 to 1070 nm Silicon detector close to where you think the laser beam is and you'll see a signal. No more time-consuming and tedious alignment photoreceiver procedures. This free-space optical receiver has a 8-32 mounting thread and includes an M4 metric adaptor and tool.
Specifications
- Detector Diameter8.0 mm
- 3 dB Bandwidth1 MHz, 150 kHz, & 90 kHz
- Wavelength Range400-1070 nm
- Optical InputFree Space
- Detector MaterialSilicon
- Detector TypePIN
- Maximum Conversion Gain1.2x106 V/W
- Maximum Transimpedance Gain2x103, 105, & 2x106 V/A
- NEP43 pW/√Hz
- Saturation Power4 mW
- Peak Responsivity0.6 A/W
- Maximum Power Density10 mW/mm2
- Output ConnectorBNC
- Output Impedance100 Ω
- Power RequirementsInternal 9V battery
- Thread Type8-32 (M4 Adapter Included)
