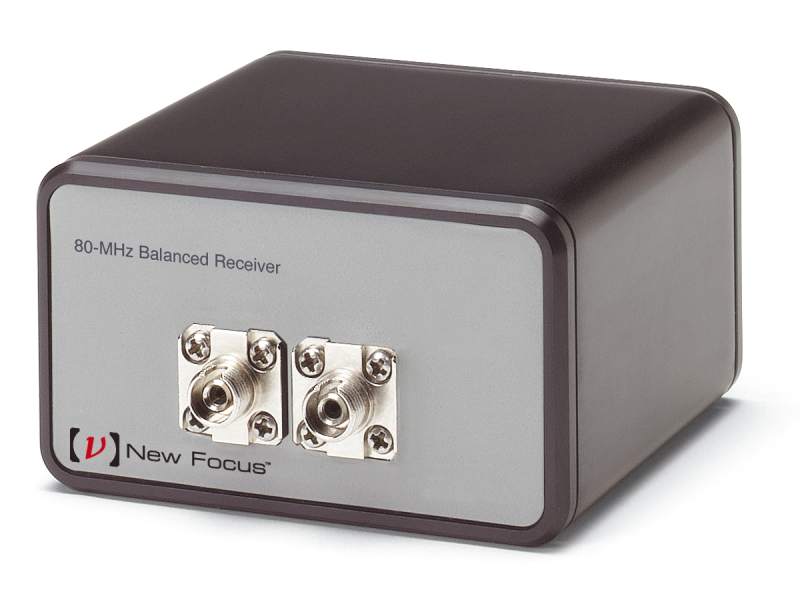

Balanced Fiber-Optic Receiver, 900-1700 nm InGaAs Detector, 80 MHz

Technical Specs

  • Optical Input
    FC / UPC
  • Detector Material
    InGaAs
  • Detector Type
    PIN
  • Detector Diameter
    0.1 mm
  • Wavelength Range
    900-1700 nm
  • 3 dB Bandwidth
    DC to 80 MHz
  • Common Mode Rejection
    25 dB
  • Rise Time
    3 ns
  • Maximum Conversion Gain
    4 x 104 V/W
  • Maximum Transimpedance Gain
    5x104 V/A
  • NEP
    3.5 pW/√Hz
  • Peak Responsivity
    1.0 A/W @ 1550 nm
  • Saturation Power
    55 µW @ 1550 nm
  • Maximum Differential Power
    5 mW @ 1550 nm
  • Maximum Balanced Power per Photodiode
    5 mW @ 1550 nm
  • Maximum RF Power
    +12 dBm bei 50 Ω
  • Output Connector
    SMA
  • Output Impedance
    50 Ω
  • Power Requirements
    ±15 VDC, 250 mA
  • Thread Type
    8-32
