Sorry, this product is no longer offered for sale.

Traveling-Wave Amplifier, 50 MHz to 20 GHz, 18 dB Non-inverting

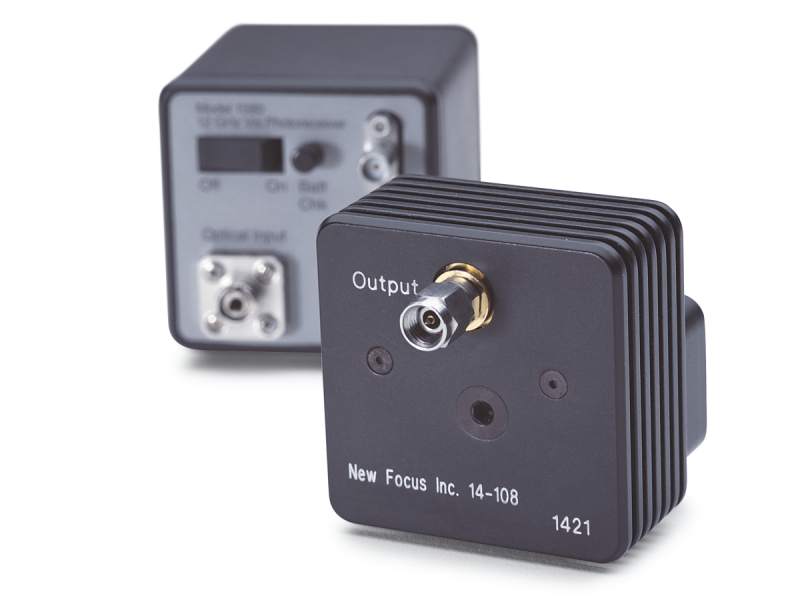

20 GHz Traveling Wave Amplifiers

The 1422 18 dB Inverting Traveling-Wave Amplifier operates from 50 MHz to 20 GHz. In some cases, amplifying your photodetector's output is essential-especially when you're using low-sensitivity instruments such as spectrum analyzers, frequency counters, or oscilloscopes. That's why we designed these high-performance traveling-wave amplifiers (TWAs) to boost the signals from our high-speed photodetectors. They can also be used as general-purpose microwave amplifiers.

Specifications

Technical Specs

Type
Traveling-Wave Amplifier
Gain
18 dB
Gain Flatness
±2 dB
Input Impedance
50 Ω
Output Impedance
50 Ω
Power Requirements
±15 V, <300 mA
Frequency Response
50 MHz-20 GHz

Impulse Response
25 ps
Noise
20 pA/Hz^-1/2
Noise Figure
8 dB
VSWR
Input: 1.8:1, Output: 2.1:1

Type
Traveling-Wave Amplifier
Gain
18 dB
Gain Flatness
±2 dB
Input Impedance
50 Ω
Output Impedance
50 Ω
Power Requirements
±15 V, <300 mA
Frequency Response
50 MHz-20 GHz

Impulse Response
25 ps
Noise
20 pA/Hz^-1/2
Noise Figure
8 dB
VSWR
Input: 1.8:1, Output: 2.1:1

Resources & Downloads

Manuals

1421 & 1422 Broadband Amplifier User Manual(366.5 kB, PDF)

2D Product Drawings

20021421 Amp connection(90 kB, PDF)
