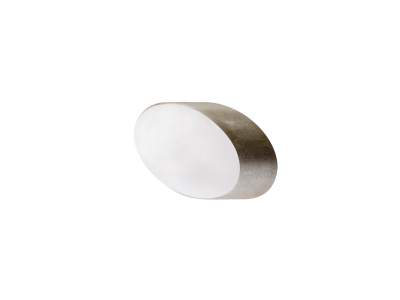

Elliptical Mirror, UV Aluminum, Borofloat, 33 mm x 46.7 mm, λ/10, 250-600 nm

The 13E20AL.2 Broadband UV Enhanced Aluminum Elliptical Mirror is an excellent general purpose, broadband reflector. This 33.02 mm (1.30 inch) minor axis, 46.70 mm (1.838 inch) major axis, elliptical mirror is made from a 9.37 mm thick Borofloat® 33 substrate. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The AL.2 UV enhanced aluminum coating is a durable, broadband UV reflector with an average reflectivity greater than 90% from 250-600 nm. The AL.2 aluminum coating contains a durable dielectric overcoat to prevent oxidation of the metal. This mirror has a λ/10 surface flatness and a 15-5 surface quality.

Specifications

Technical Specs

Wavelength Region
UV
Wavelength Range
250-600 nm
Mirror Shape
Elliptical
Mirror Size
46.7 x 33.0 mm
Thickness
9.4 mm
Material
Borofloat® 33
Coating Type
UV Enhanced Aluminum
Coating Code
AL.2
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>90% @ 250-600 nm
Damage Threshold
2 J/cm² with 10 ns pulses at 355 nm, 20Hz
Thickness Tolerance
±0.25 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
UV
Wavelength Range
250-600 nm
Mirror Shape
Elliptical
Mirror Size
46.7 x 33.0 mm
Thickness
9.4 mm
Material
Borofloat® 33
Coating Type
UV Enhanced Aluminum
Coating Code
AL.2
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>90% @ 250-600 nm
Damage Threshold
2 J/cm² with 10 ns pulses at 355 nm, 20Hz
Thickness Tolerance
±0.25 mm
Chamfers
0.38–1.14 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
