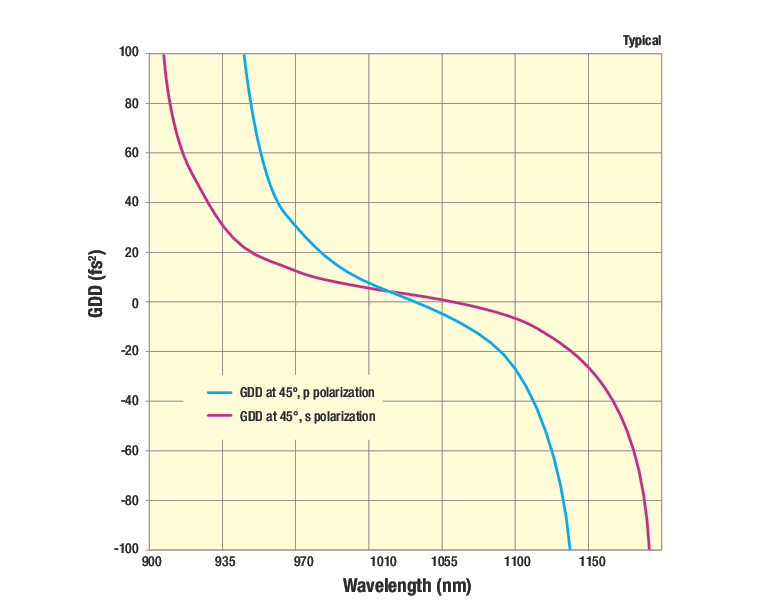

The 10QM20UF.F15 is a low GDD Ytterbium Laser Mirror optimized for 1020-1050 nm. Made out of fused silica, the mirror size is 25.4 mm in diameter and 6.35 mm thick. This ultrafast mirror is ideal as a high reflectance steering mirror for Ytterbium lasers at 45° angle of incidence. Careful thin film design and advanced coating processes result in a mirror with maximum reflectivity with minimum effect on pulse dispersion.
10Z20DM.10Dielectric Mirror, Laser Line, Zerodur, 25.4 mm, λ/10, 1030-1090nm
UNIVERSAL
In Stock
$171.00
10QM20HM.15Nd:YAG Laser Mirror, High-Energy, 25.4 mm, 45°, 1064 nm, Polished
UNIVERSAL
In Stock
$223.00
10D20ER.4Gold Mirror, Borofloat, 25.4 mm, λ/10, 650-20,000 nm
UNIVERSAL
In Stock
$98.00
10QM20UF.F15 - Drawings & CAD
Additional CAD file downloads are not available for this product.
10QM20UF.F15 - Drawings
Additional drawings are not available for this product.
