Long Lived Deep UV Excimer Laser Mirror, 25.4 mm, 45°, 193 nm

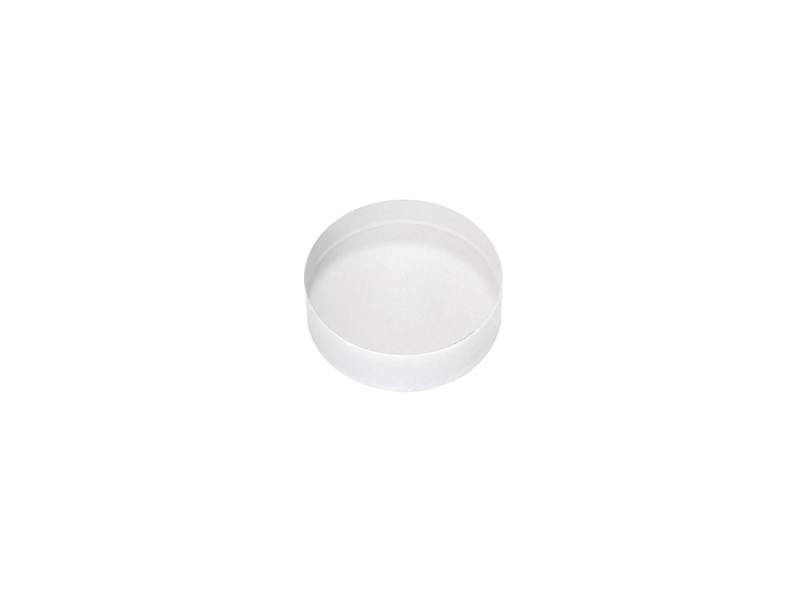

The 10QE20LL.55 is a Long Lived Deep UV Excimer Laser Mirror, 25.4 mm in diameter, 6.35mm thick, and is coated for 193 nm, optimized for 45° angle of incidence.
Long Lived Deep UV Mirrors are manufactured using high purity Excimer grade fused silica substrates and ultra hard dielectric coatings. Meticulous production procedures guarantee they will withstand greater than 30 Billion pulses. The coating is highly durable and will withstand repeated cleaning.
Specifications
- Wavelength RegionUV
- Wavelength Range193 nm
- Mirror ShapeRound
- Diameter25.4 mm
- MaterialUV Excimer Grade Fused Silica
- Coating TypeLow Loss Dielectric
- Coating CodeLL.55
- ReflectivityRave>96% @ 45° AOI @ 193 nm
- Surface Quality10-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Wedge<3 arc min
- Angle of Incidence45°
- Thickness6.35 mm
- Thickness Tolerance±0.25 mm
- Diameter Tolerance+0/-0.25 mm
- Chamfers0.5 mm face width
- Chamfers Angle Tolerance45° ±15°
