Ultrafast Mirror, FemtoOptics, 25.4 mm, 0° AOI, HR 400 nm, HT 800 nm

Femtosecond Optimized Harmonic Mirrors

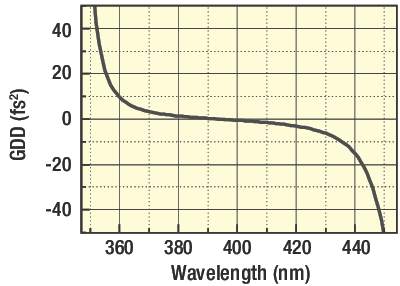

The FemtoOptics Ultrafast Mirror is 25.4 mm in diameter and 6.35 mm thickness, λ/10 flatness, and 10-5 scratch-dig. Designed for 0 degrees angle of incidence to have high reflection at 400 nm and high transmission at 800 nm, this mirror can have a double use of being a dichroic beamsplitter or beam combiner. Having a bandwidth of 80 nm centered at 400 nm, this mirror can support minimum pulse durations ranging from 9 fs to 12 fs, depending on the spectral shape.

Specifications

Technical Specs

Wavelength Region
UV
Wavelength Range
360-440 nm
Diameter
25.4 mm
Material
N-BK7
Coating Code
UF.HR40
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 633 nm
Wedge
<5 arc min
Angle of Incidence
0°

Clear Aperture
> central 85% of diameter
Back Surface
Commercial Polished
Reflectivity

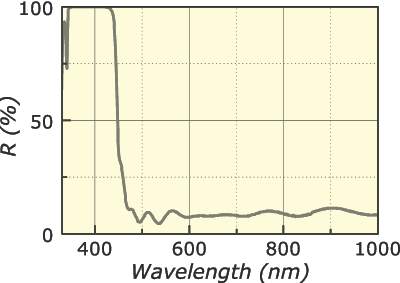

R>99.6% @ 360-440 nm, T>96% @ 500-1000 nm
Thickness
6.35 mm
Thickness Tolerance
±0.1 mm
Diameter Tolerance
+0/-0.1 mm
Cleaning
See How to Clean Optics

Wavelength Region
UV
Wavelength Range
360-440 nm
Diameter
25.4 mm
Material
N-BK7
Coating Code
UF.HR40
Surface Quality
10-5 scratch-dig
Surface Flatness
λ/10 at 633 nm
Wedge
<5 arc min
Angle of Incidence
0°

Clear Aperture
> central 85% of diameter
Back Surface
Commercial Polished
Reflectivity
R>99.6% @ 360-440 nm, T>96% @ 500-1000 nm
Thickness
6.35 mm
Thickness Tolerance
±0.1 mm
Diameter Tolerance
+0/-0.1 mm
Cleaning
See How to Clean Optics
