Broadband Turning Mirror, Ultrafast, 25.4 mm, S Pol, 670-1340 nm
Broadband Turning Mirror, Ultrafast, 25.4 mm, S Pol, 670-1340 nm
Model: 10Q20UF.55S
In Stock
Product Series Overview

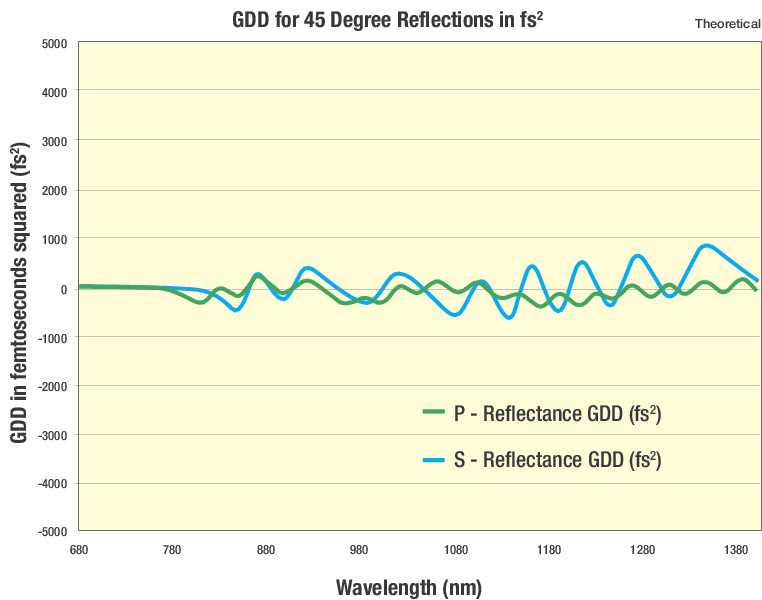

Super Broadband Ultrafast MirrorsThe 10Q20UF.55S Ultrafast Broadband Turning Mirrors is ideal for use with ultrashort pulses lasers as a high reflectance mirror at 45° angle of incidence for a very broad wavelength range spanning from 670 to 1340 nm. Designed to reflect over 99.7% at S polarization, this mirror can be used exclusively with Spectra-Physics Insight™lasers. Careful thin film design and advanced coating processes result in a mirror with maximum reflectivity, maximum bandwidth and minimum effect on pulse dispersion. Minimizing phase distortion and neutral GDD across the tuning range, this mirror is optimized for S polarization.
Specifications
- Wavelength RegionBroadband
- Wavelength Range670-1340 nm
- Mirror ShapeRound
- Diameter25.4 mm
- MaterialFused Silica
- Coating TypeBroadband Ultrafast Pulse Coating
- Coating CodeUF.55S
- Surface Quality20-10 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Wedge< 10 arc min
- Angle of Incidence45°
- Clear Aperture≥ central 80% of diameter
- Back SurfaceCommercial Polished

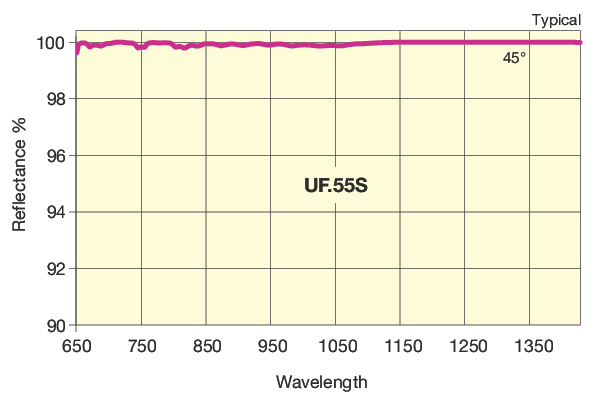

- ReflectivityRs>99.7% @ 670-1340 nm
- Thickness6.0 mm
- Thickness Tolerance±0.25 mm
- Diameter Tolerance+0/-0.13 mm
- Chamfers0.5-0.75 mm face width
- Chamfers Angle Tolerance45 ±15°
- Cleaning
Resources & Downloads
3D Product Models
Other
10Q20UF.55S RoHS Certificate(265.9 kB, PDF) 10Q20UF.55S_ROHS2-2021.pdf(280.2 kB, PDF)
2D Product Drawings
10Q20UF.55x Dwaring(373.9 kB, PDF)
