Sorry, this product is no longer offered for sale. The recommended replacement product is 10Q620BB.HR2-PK.

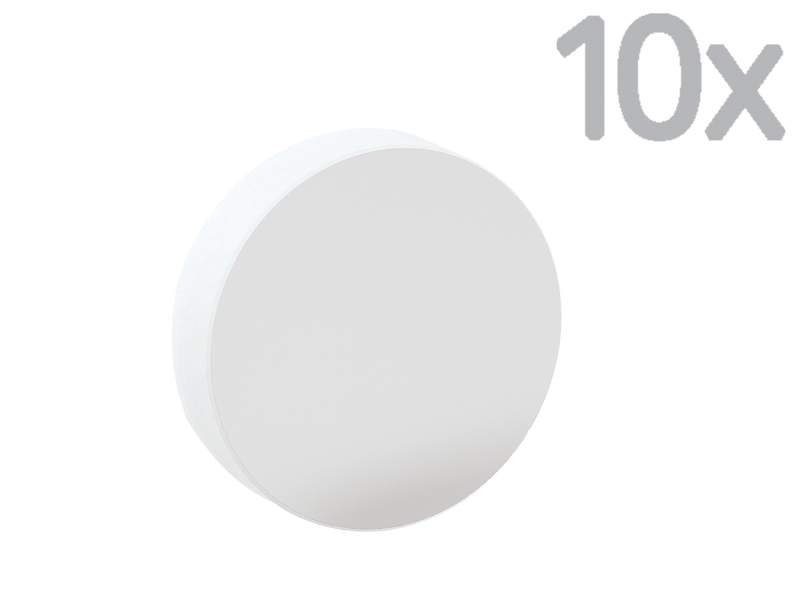

Ultra-Broadband Dielectric High Reflector Mirror, 1 in., 0-50°, 350-1100 nm, Pack of 10
ITEMThis is a pack of the very popular
BroadBeam High Reflectors have an average reflectivity of 99% or better. They are manufactured using UV grade fused silica substrates and ultrahard dielectric IBS coatings. The BB.HR coating covers wavelengths from the UV to the visible to the IR.
BroadBeam High Reflectors have an average reflectivity of 99% or better. They are manufactured using UV grade fused silica substrates and ultrahard dielectric IBS coatings. The BB.HR coating covers wavelengths from the UV to the visible to the IR.
Specifications
- Wavelength RegionBroadband
- Wavelength Range350-1100 nm
- Mirror ShapeRound
- Diameter25.4 mm
- Mirror SizeØ25.4 mm
- Thickness6.0 mm
- MaterialUV Grade Fused Silica
- Coating TypeLow Loss Dielectric
- Coating CodeBB.HR
- Surface Quality10-5 scratch-dig
- Surface Flatnessλ/10 at 632.8 nm
- Wedge<3 arc min
- Angle of Incidence0-50°
- Clear Aperture≥central 80% of diameter
- ReflectivityRave>99% @ 0-50° AOI @ 350-1100 nm
- Damage Threshold2 J/cm² with 10 nsec pulses @ 532 nm
- Diameter Tolerance+0/-0.1 mm
- Thickness Tolerance±0.2 mm
- Chamfers0.5 mm
- Chamfers Angle Tolerance45° ±15°
- Cleaning
