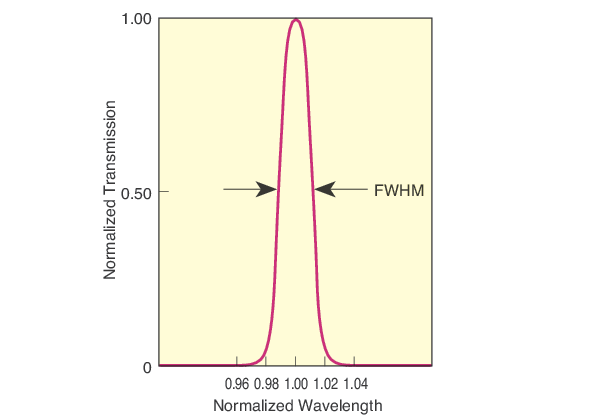

The 10LF10-830 Laser Line Filter is 25.4 mm diameter with a center wavelength of 830 ± 2 nm, and full width half max of 12 ± 2 nm. It is optimized to block X-ray to Far IR wavelengths. Laser Line Filters are ideal for transmitting laser light while suppressing ambient light. The center wavelength shifts linearly with temperature less than 0.02 nm/°C. The highly reflective side of the filter should generally face the source, minimizing the thermal load on the blocking glass and epoxies.
Additional CAD file downloads are not available for this product.
10LF10-830 - Drawings
Additional drawings are not available for this product.
10LF10-830
