Gold Mirror Pack, Economy, Borofloat, 25.4 mm, λ/10, 650-20,000 nm, Qty 10

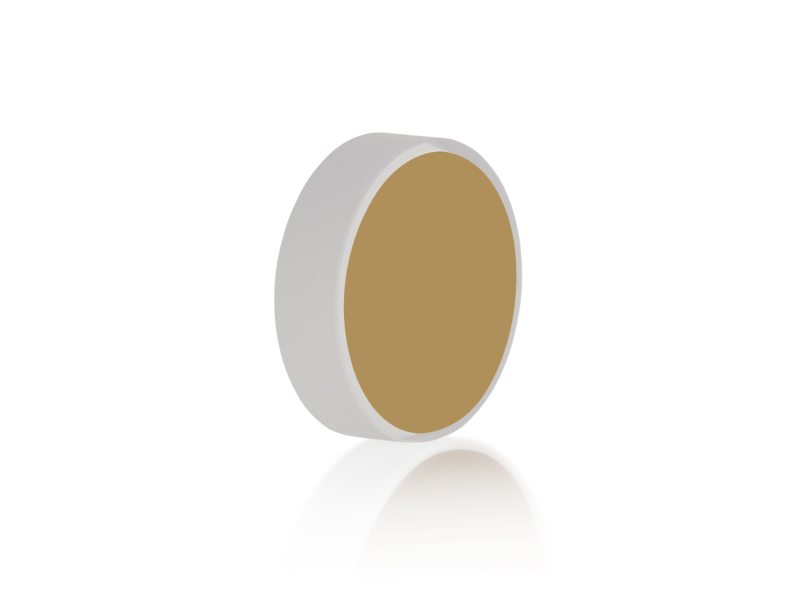

This is a 10-pack of the Economy Broadband Gold Mirrors. By taking advantage of advanced polishing techniques and our high-volume manufacturing, these mirrors are truly cost effective. These 25.4 mm (1.0 inch) diameter mirrors are made from 6.0 mm thick Borofloat® 33 substrate and are coated with the ER.4 gold coating. Borofloat® 33 has low thermal expansion and is an excellent substrate for most applications. The ER.4 protected gold coating is ideal for applications requiring broadband reflectance in the near IR to the far IR. A multilayer dielectric overcoat provides protection to the gold from the environment. The 10D620ER.4 has an average reflectivity greater than 96% from 650–1700 nm and greater than 98% from 1.7–20 μm. These mirrors have a λ/10 surface flatness and a 40-20 surface quality.

Specifications

Technical Specs

Wavelength Region
Broadband
Wavelength Range
650-20000 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Borofloat® 33
Coating Type
Protected Gold
Coating Code
ER.4
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity

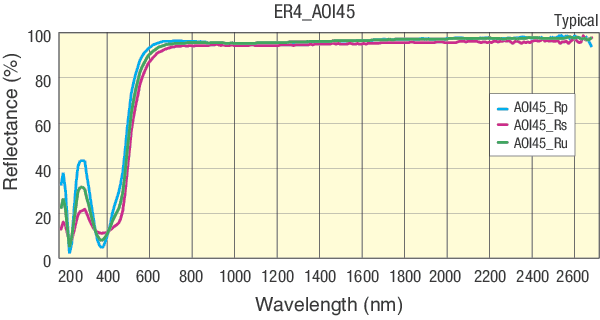

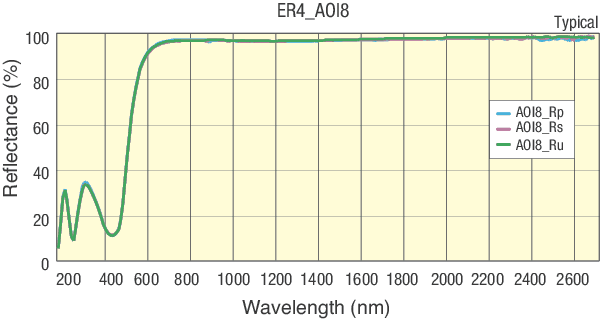

R_avg>96%, R_min>92% @ 650-1700 nmR_avg>98%, R_min>96% @ 1.7-20 µm
Damage Threshold
0.5 J/cm², 10 ns pulses , 20 Hz at 1064 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Wavelength Region
Broadband
Wavelength Range
650-20000 nm
Mirror Shape
Round
Diameter
25.4 mm
Mirror Size
Ø25.4 mm
Thickness
6.0 mm
Material
Borofloat® 33
Coating Type
Protected Gold
Coating Code
ER.4
Surface Quality
40-20 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Reflectivity
R_avg>96%, R_min>92% @ 650-1700 nmR_avg>98%, R_min>96% @ 1.7-20 µm
Damage Threshold
0.5 J/cm², 10 ns pulses , 20 Hz at 1064 nm
Diameter Tolerance
+0/-0.13 mm
Thickness Tolerance
±0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics

Resources & Downloads

Other

10D620ER.4-PK RoHS Certificate(705.6 kB, PDF)
ER.4 Raw Data.xlsx(223.5 kB, XLSX)

Related Products

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		10D620ER.4Gold Mirror, Economy, Borofloat, 25.4 mm, λ/10, 650-20,000 nm	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$60

Supporting

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

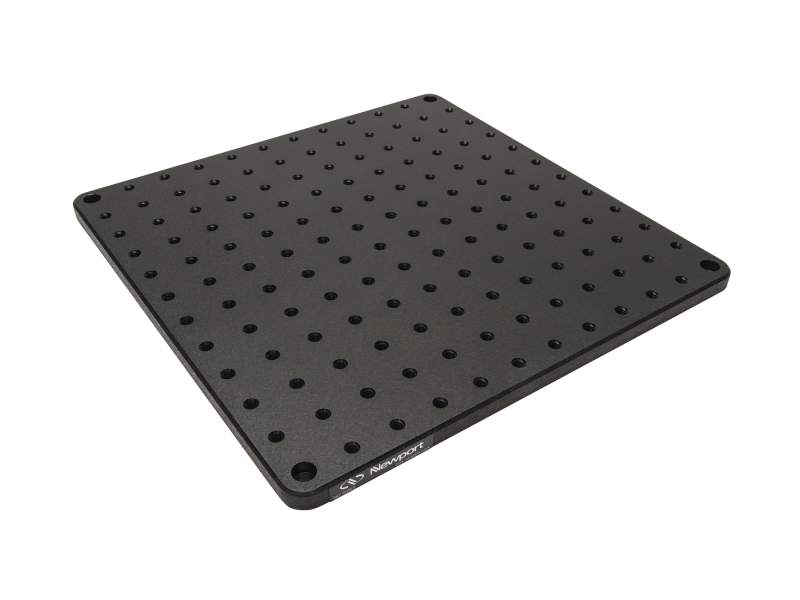

		SA2-11Optical Breadboard Plate, Solid Aluminum, 12 x 12 in., 1 in. 1/4-20 Grid	IMPERIAL		Contact Us FREE 2-day shipping on thousands of products on Newport.com Learn More	$202

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

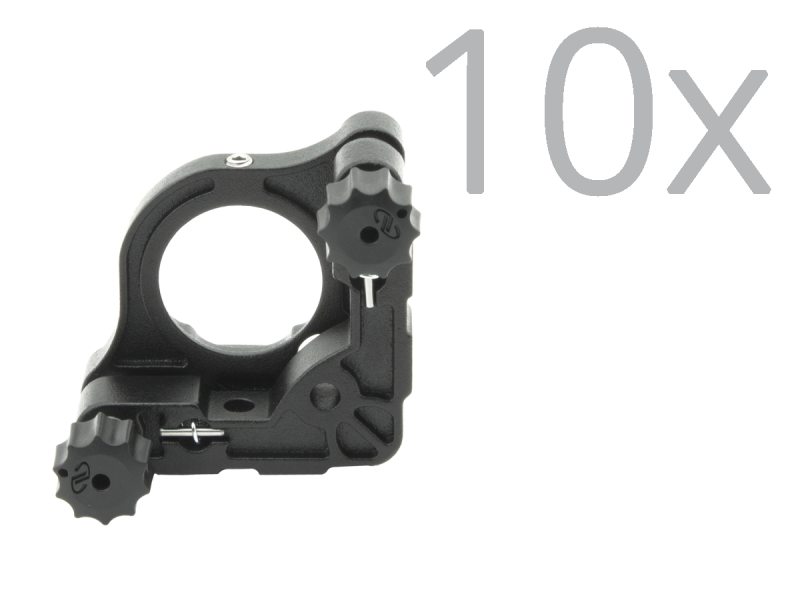

		M1-PKMirror Mount, Lab Standard, 1.0 in. Diameter, 2 Knob Actuators, 10 Pack	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$416

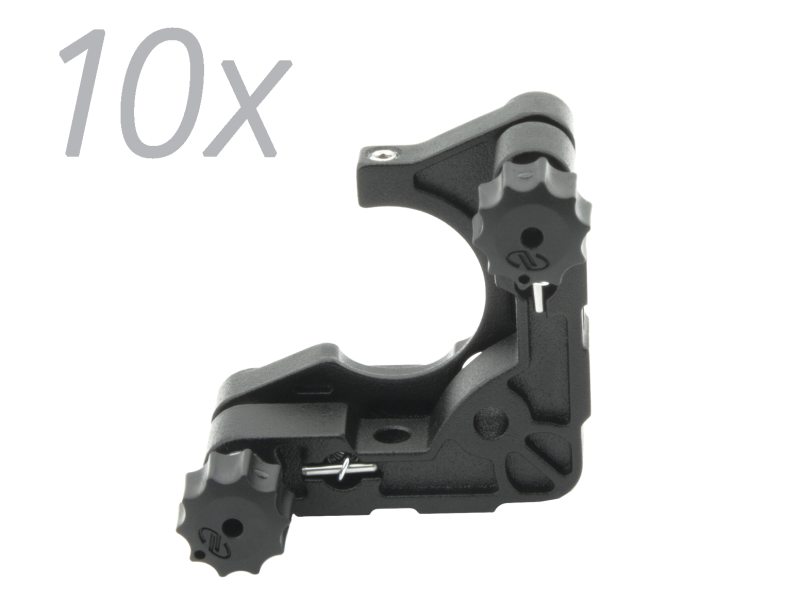

		M1Q-PKMirror Mount 10 Pack, 1.0 in., 2 Knob Actuators, M1Q	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$437
