Dielectric Mirror, Laser Line, 25.4 mm, λ/10, 441.6 nm

Borofloat 33 Laser Line Dielectric Mirrors

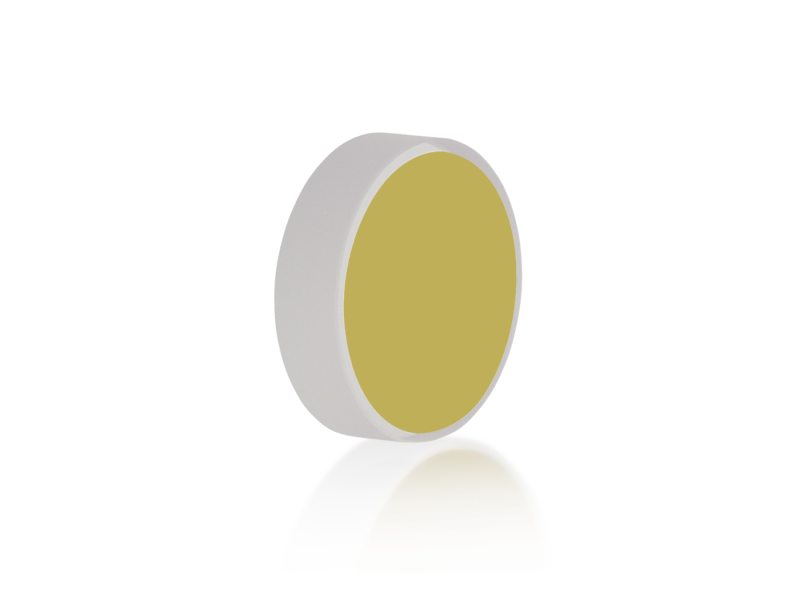

The 10D20DM.6 Laser Line Dielectric mirror is a highly efficient reflector optimized for the 441.6 nm wavelength. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The DM.6 coating is designed for use with HeCd lasers and has a center wavelength of 441.6 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.

Specifications

Technical Specs

Wavelength Region
VIS
Wavelength Range
441.6 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
DM.6
Reflectivity

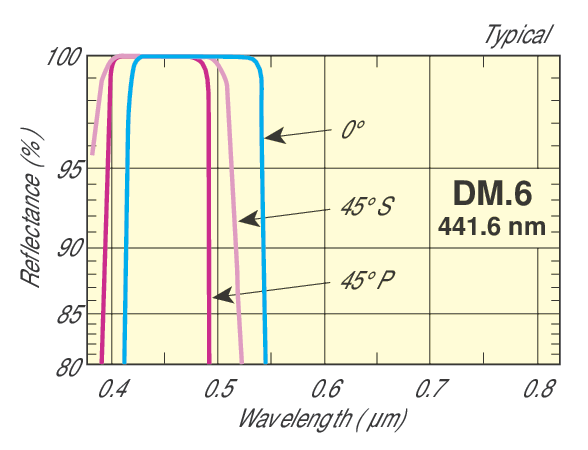

R_s, R_p>99% @ 441.6 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10D20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm2 CW, 1 J/cm2 for 10 nsec pulses

Wavelength Region
VIS
Wavelength Range
441.6 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
DM.6
Reflectivity
R_s, R_p>99% @ 441.6 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10D20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm2 CW, 1 J/cm2 for 10 nsec pulses

Resources & Downloads

Other

10D20DM.6 RoHS Certificate(702.9 kB, PDF)
DM.6 Raw Data.xlsx(50.7 kB, XLSX)

2D Product Drawings

Laser Line Dielectric Mirror Drawing(102.9 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
10D20AL.2UV Aluminum Mirror, Borofloat, 25.4 mm, λ/10, 250-600 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$78
10Q20BB.1Dielectric Mirror, Ultra-broadband, 25.4 mm, 99% 0-50°, 350-700 nm	UNIVERSAL	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$391
20D20DM.6Dielectric Mirror, Laser Line, 50.8 mm, λ/10, 441.6 nm	UNIVERSAL	In Stock	$305

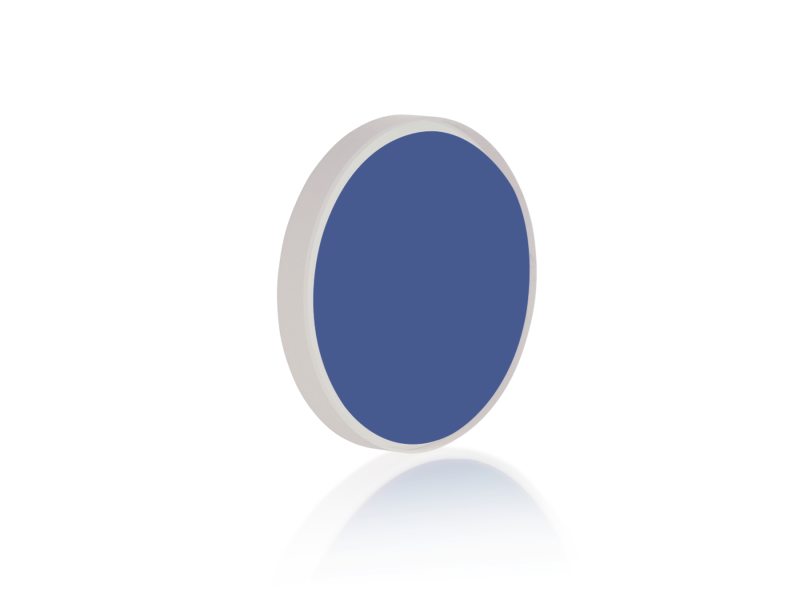

10J00ER.3Aluminum Mirror, Float Glass, 25.4 mm, 5λ, 400-10,000 nm	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$25

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

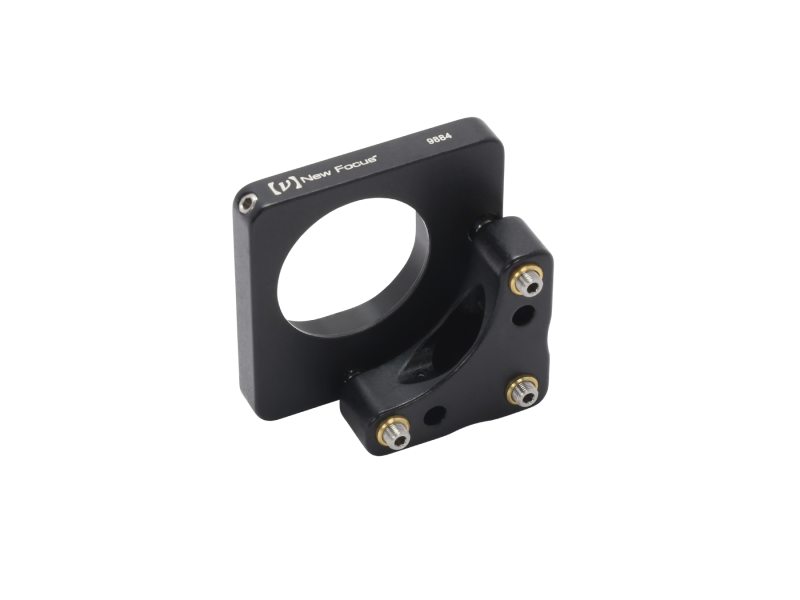

		9884-KMirror Mount, Pint-Sized, Corner, 1.0 in., 3 Allen-Keys	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$185
		U100-A2KMirror Mount, ULTIMA^®, Clear Edge, 1.0 in., 2 Locking Knobs	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$150

Frequently Purchased Together

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		10RP02-10Zero-Order Waveplate, Half-Wave, Quartz, 25.4 mm Diameter, 441.6 nm	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$571

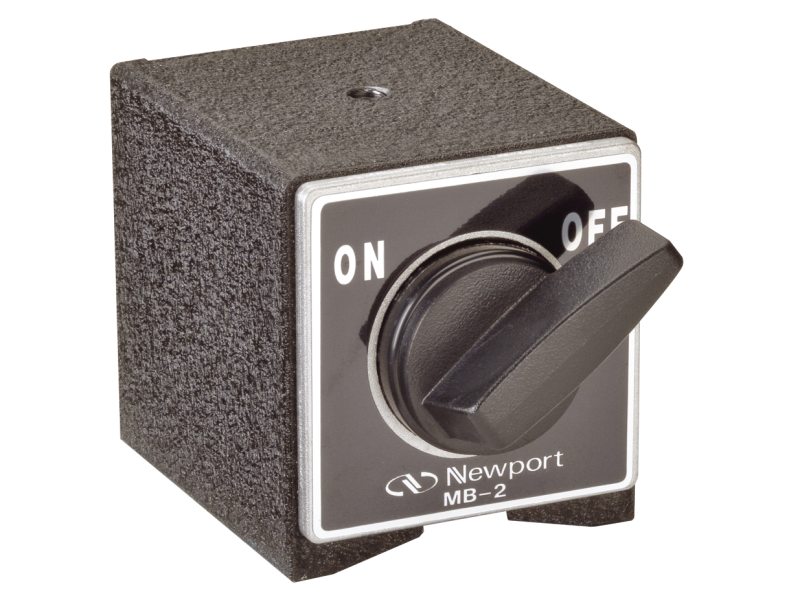

		M-MB-2Standard Magnetic Base, 90 lb. Holding Force, M6 Thread	METRIC		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$78
