Dielectric Mirror, Laser Line, 25.4 mm, λ/10, 488-514.5 nm

Borofloat 33 Laser Line Dielectric Mirrors

The 10D20DM.5 Laser Line Dielectric mirror is a highly efficient reflector optimized for a narrow 488-514.5 nm wavelength range. This 1 inch (25.4 mm) diameter mirror is made from a 6.0 mm thick Borofloat® 33 substrate. Borofloat has low thermal expansion and is an excellent substrate for most applications. The DM.5 coating is designed for use with Argon-Ion lasers and has a center wavelength of 488 & 514.5 nm. The coating achieves greater than 99% reflectance, from 0–45° angle of incidence, for any polarization. This multilayer dielectric coating is extremely durable, making it resistant to damage from repeated cleaning. This mirror has a λ/10 surface flatness and a 15-5 surface quality.

Specifications

Technical Specs

Wavelength Region
VIS
Wavelength Range
488-514.5 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
DM.5

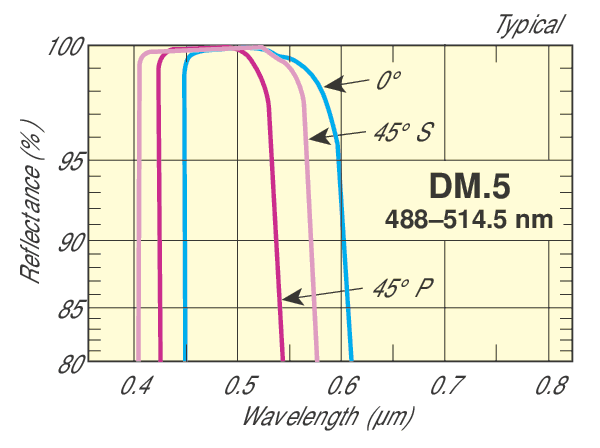

Reflectivity
R_s, R_p>99% @ 488-514.5 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10D20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm2 CW, 1 J/cm2 for 10 nsec pulses

Wavelength Region
VIS
Wavelength Range
488-514.5 nm
Mirror Shape
Round
Diameter
25.4 mm
Material
Borofloat® 33
Coating Type
Laser Line Dielectric
Coating Code
DM.5
Reflectivity
R_s, R_p>99% @ 488-514.5 nm
Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Substrate Number
10D20
Angle of Incidence
0-45°

Clear Aperture
≥central 80% of diameter
Back Surface
Ground
Thickness
6.0 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.13 mm
Chamfers
0.25–0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Cleaning
See How to Clean Optics
Damage Threshold
500 W/cm2 CW, 1 J/cm2 for 10 nsec pulses

Resources & Downloads

Other

10D20DM.5 RoHS Certificate(704.8 kB, PDF)
DM.5 Raw Data.xlsx(59.3 kB, XLSX)
