Laser Beam Sampler, Ultrafast, 25.4 mm Diameter, 3.0 mm Thick

Model: 10B20-01NC.2

$283

Compare

Product Series Overview

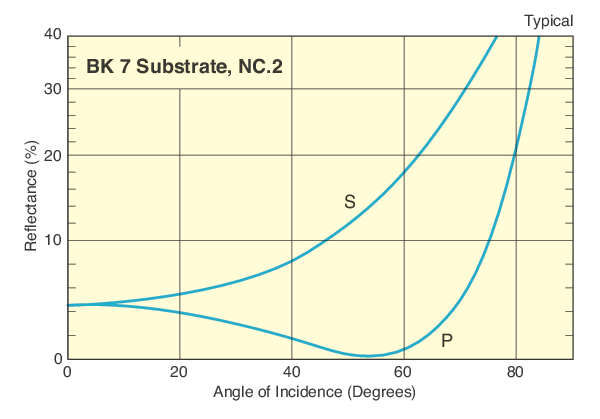

The 10B20-01NC.2 Ultrafast Laser Beam Sampler is designed to minimize pulse dispersion while splitting off, or sampling, a beam for monitoring applications. This 1.0 inch (25.4 mm) diameter beam splitter is 3.0 mm thick. It is uncoated on the front surface to achieve beam division by Fresnel Reflection, and the back surface is antireflection coated to prevent ghosting. A slight wedge in the substrate virtually eliminates internal fringes.

Specifications

Technical Specs

Wavelength Range
660-1000 nm
Diameter
25.4 mm
Material
Grade A N-BK7
Antireflection Coating
NC.2, R_avg < 0.75%
Angle of Incidence
45°
Orientation
Beam should enter surface marked with an arrow
Damage Threshold
500 W/cm² CW, 7 J/cm² for 10 nsec pulses, typical @ 780 nm
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm

Thickness
3.0 mm
Thickness Tolerance
±0.38 mm
Wedge
30 ±15 arc min
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Substrate Number
10B20-01

Wavelength Range
660-1000 nm
Diameter
25.4 mm
Material
Grade A N-BK7
Antireflection Coating
NC.2, R_avg < 0.75%
Angle of Incidence
45°
Orientation
Beam should enter surface marked with an arrow
Damage Threshold
500 W/cm² CW, 7 J/cm² for 10 nsec pulses, typical @ 780 nm
Surface Flatness
≤λ/10 at 632.8 nm over the clear aperture
Surface Quality
15-5 scratch-dig
Diameter Tolerance
+0/-0.13 mm

Thickness
3.0 mm
Thickness Tolerance
±0.38 mm
Wedge
30 ±15 arc min
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Durability
MIL-C-675C, moderate abrasion million cycles
Substrate Number
10B20-01

Resources & Downloads

2D Product Drawings

BS-1-DWG-thin-S(69.8 kB, PDF)

Other

10B20-01NC.2 RoHS Certificate(708.4 kB, PDF)
NC.2 Raw Data.xlsx(73.8 kB, XLSX)
