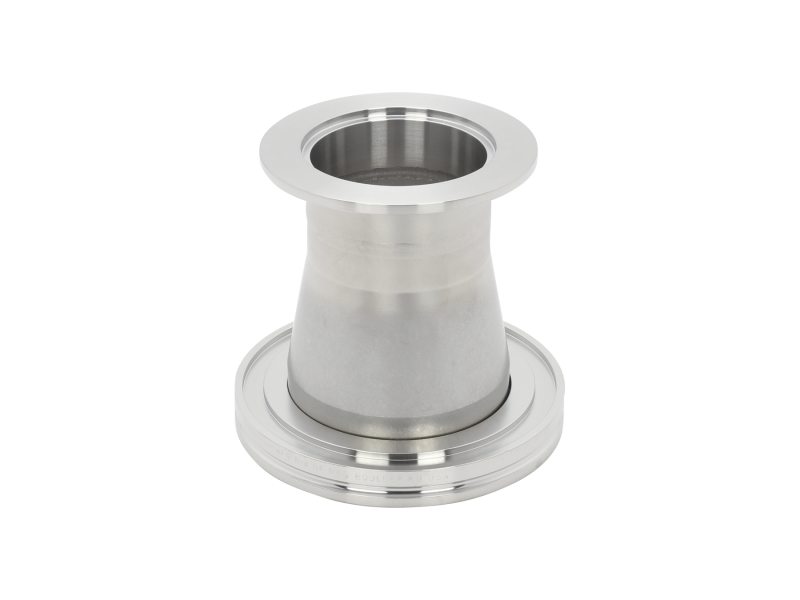

ISO-MF Flange Adapter, NW63 ISO-MF to NW50 ISO-KF, Conical Profile
The 100765017 ISO-MF Flange Adapter is used to adapt a NW63 size ISO-MF flange to a size NW50 ISO-KF vacuum flange. This Series 76 adapter features a high conductance conical profile reducer and is made of 304 stainless steel. Specifications
Component Type
Flange Adapter
Series
Series 76
Flange Type
ISO-MF
Flange Size
NW63
Flange Size 2
NW50 ISO-KF
Material
304 Stainless Steel
Inner Diameter
2.37 in. (60 mm)
Inner Diameter 2
1.87 in. (47 mm)
Length
3.39 in. (86 mm)
A
86 mm
B
60 mm
C
47 mm
