Viton O-Ring, NW63 Size ISO-MF Vacuum Flange, 2-336 O-Ring Size

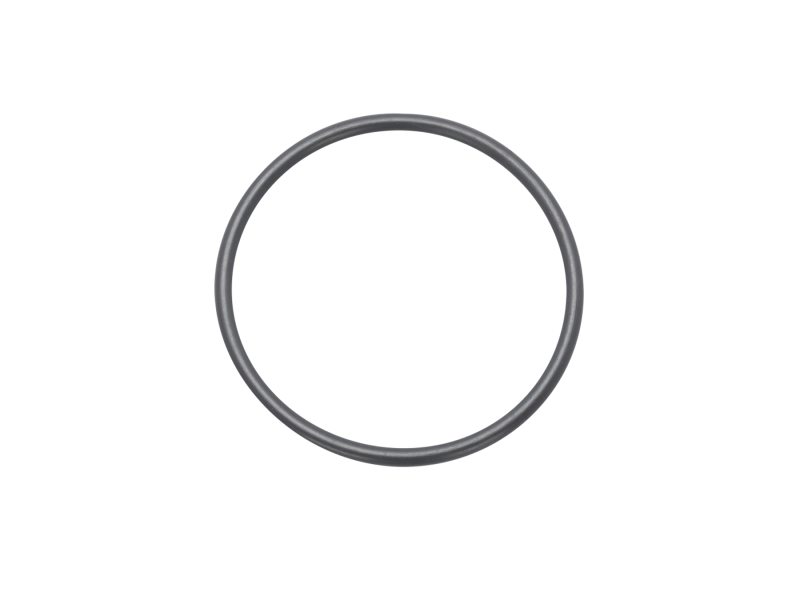

The 100762006 Viton O-Ring is designed for use with size NW63 ISO-MF centering ring assemblies. This 2-336 size O-ring is made of black Viton compound V747-75 and is rated for up to 150 deg. C bakeout temperature. This Series 76 accessory offers enhanced chemical resistance and lasts longer than similar Buna-N O-rings and can be used as a spare or replacement O-ring.
Specifications
- Component TypeO-Ring
- SeriesSeries 76
- Flange TypeISO-MF
- Flange SizeNW63
- Seal MaterialViton
- Inner Diameter72 mm
- Thickness5 mm

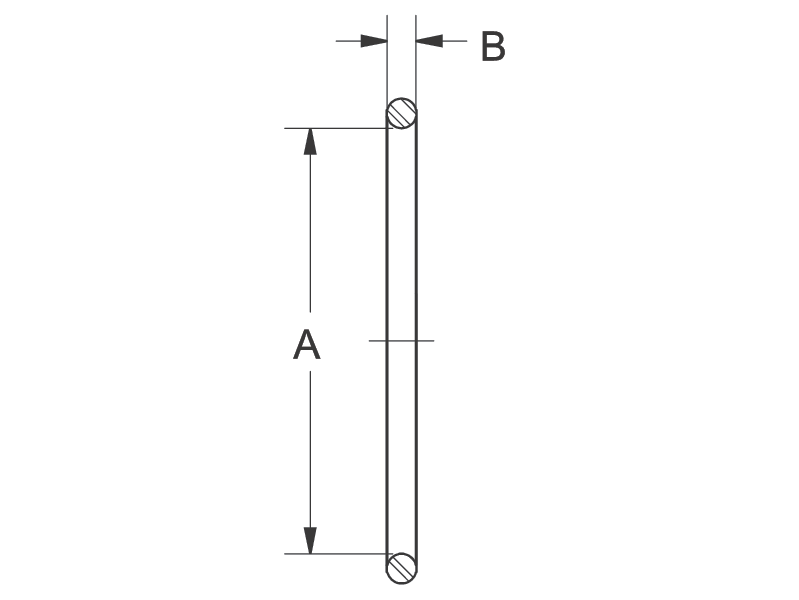

- A72 mm
- B5 mm
