Flange Bolt Set, NW160 ISO-BF, M10 x 50 mm, 1.50 mm Pitch, Set of 8

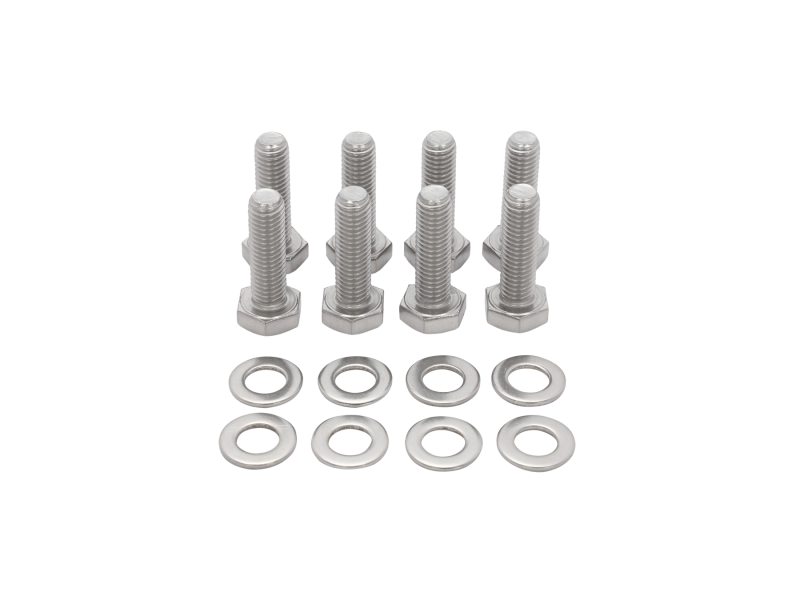

The 100761316 Flange Bolt Set is designed for joining a size NW160 ISO-BF bolted flange to a size NW160 tapped flange. This set of 304 stainless steel hardware includes (8) M10 threaded 50 mm bolts with 1.50 mm pitch and (8) M10 washers which is what is required to join NW160 vacuum flanges. Series 76 ISO-BF flanges and seals are designed to be tightened to metal to metal contact. It is important that the bolts not be over tightened or warping of the flanges could result. The torque rating for flange bolts is 7 to 10 pounds per foot.
Specifications
- Component TypeFlange Bolt Set
- SeriesSeries 76
- Flange TypeISO-BF
- Flange SizeNW160
- MaterialStainless Steel
- Length35 mm
- Bolt SizeM10
- Pitch1.5 mm
- Pack Quantity8
