Single Claw Flange Clamp, ISO-MF Sizes NW160 to NW250, M10 Thread

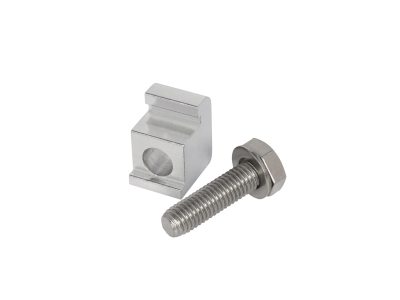

The 100761016 Single-claw Flange Clamp is used to join a size NW160, NW200, or NW250 ISO-MF vacuum flange to an M10 tapped flange. Series 76 single claw clamps feature stainless steel bolts and washers with an aluminum flange clamp designed for ISO-MF flanges. ISO flanges and seals are designed to be tightened to metal to metal contact. It is important that the clamps or bolts not be over tightened or warping of the flanges could result. The torque rating for clamps and bolts is 7 to 10 pounds per foot.
Specifications
- Component TypeSingle Claw Flange Clamp
- SeriesSeries 76
- Flange TypeISO-MF
- Flange SizeNW160 to NW250
- MaterialAluminum
- Bolt SizeM10
- A32 mm
- B19 mm
- C20 mm
