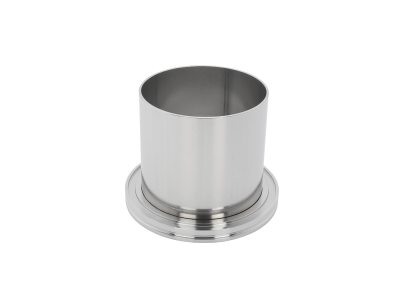

ISO-MF Weld Stub Flange, NW100, 4 in. Bore, 0.083 in. Wall, 3.94 in. Length
The 100760411 Long Weld Stub Flange is made with 304 stainless steel and designed to be buttwelded to 4 inch OD vacuum tubing. This weld stub features a size NW100 ISO-MF vacuum flange and has a 3.94 in. (100 mm) overall length and 0.083 inch tube wall. Series 76 ISO-MF components feature a vacuum flanging system for 63 mm to 630 mm fittings with flange dimensions meeting the requirements established by the International Standards Organization (ISO). They function as modular building blocks in vacuum piping systems and are compatible with ISO compliant components from other manufacturers. ISO-MF flanges are “sexless” with the seal on a symmetrical centering ring that interfaces with two identical size ISO flanges. ISO-MF flanges are more compact than ASA flanges, which were designed for pressure and are unnecessarily massive for vacuum use. The Series 76 ISO-MF flanges can be joined to other ISO-MF flanges using double claw clamps, to ISO-BF flanges using a rotatable bolt ring, nuts, and bolts, or to a tapped flange using single claw clamps. Applications ISO universal components include roughing and foreline plumbing, high-vacuum, high-conductance interconnections, modular systems needing frequent modifications, and research laboratories.
