Metal Wall Vacuum Hose, NW16 ISO-KF, 305 mm Length, 0.15 mm Hose Wall

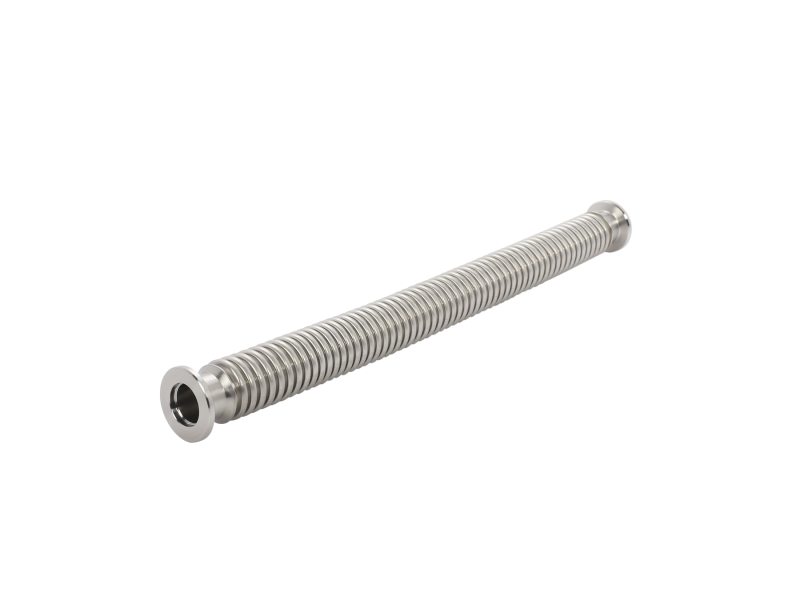

The 100319805 Thin Metal Wall Vacuum Hose is 12.02 inch (305 mm) in length with size NW16 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 1 5/8 inch static bend radius and can be compressed to a 7.82 in. (199 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- Wall Thickness0.006 in. (0.15 mm)
- Static Bend Radius1.625 in.
- Spring Rate21 lb/in.
- Free Length305 mm
- Compressed Length199 mm
- A305 mm
- B199 mm
