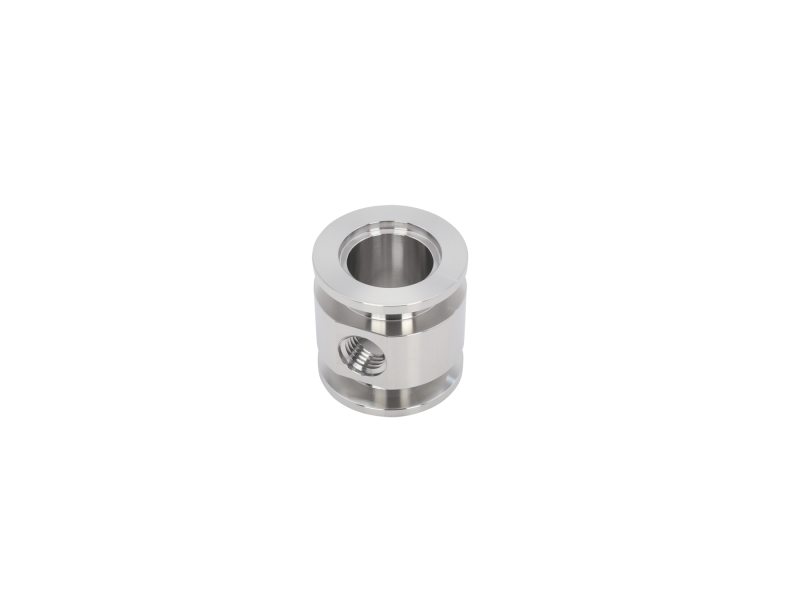

ISO-KF Flange Adapter Tee, NW25 Flange to 0.25 in. Female NPT, S.S.
The 100319603 ISO-KF Stainless Steel Flange Adapter Tee is used to create a 1/4 inch female NPT (National Pipe Taper) branch port in NW25 size ISO-KF vacuum piping systems. Series 31 ISO-KF vacuum components are designed for use at subatmospheric pressure and use standard interface dimensions defined by the International Standards Organization (ISO) allowing them to be interchangeable with other ISO-KF compliant components. Series 31 components can be used as modular building blocks to create vacuum piping systems. IS-KF flanges are "sexless" with a symmetrical seal so that so that components are rotatable. ISO-KF vacuum flanges are joined by inserting a centering ring between the two flange faces, and securing them with a flange encompassing clamp.
Specifications
- Component TypeNPT Pipe Adapter
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- NPT Fitting Size0.25 in. Female
- Length40 mm
- A19 mm
- B40 mm
