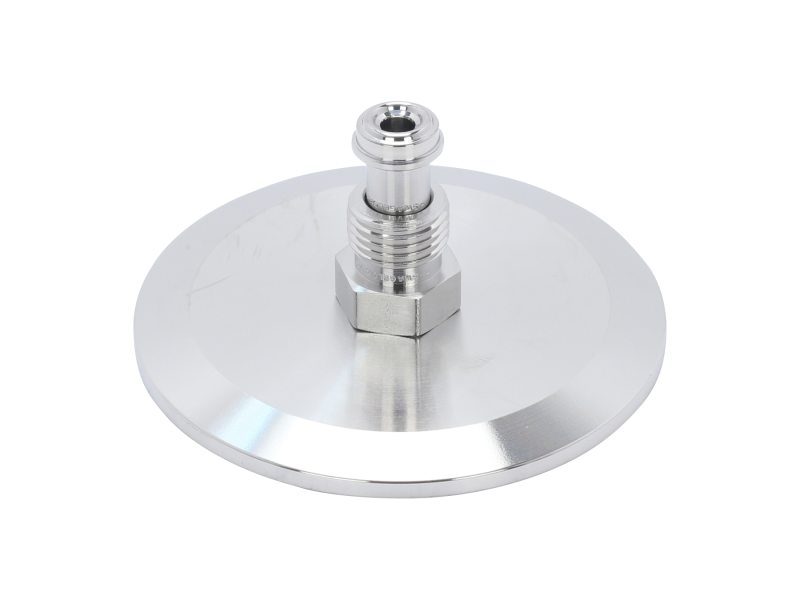

ISO-KF Flange Adapter, NW50 Size Flange to 0.25 inch Male VCR Fitting
The 100319116 Flange Adapter is used to convert a size NW50 ISO-KF vacuum flange to a 1/4 inch Male VCR fitting. Series 31 flange adapters allow other flange types and fittings to be used with ISO-KF vacuum flanges. Specifications
Component Type
VCR Fitting Adapter
Series
Series 31
Material
304 Stainless Steel
Flange Type
ISO-KF
Flange Size
NW50
VCR Fitting Size
0.25 in. Male
Length
36 mm
Inner Diameter
5 mm
A
36 mm
B
5 mm
Component Type
VCR Fitting Adapter
Series
Series 31
Material
304 Stainless Steel
Flange Type
ISO-KF
Flange Size
NW50
VCR Fitting Size
0.25 in. Male
Length
36 mm
Inner Diameter
5 mm
A
36 mm
B
5 mm
