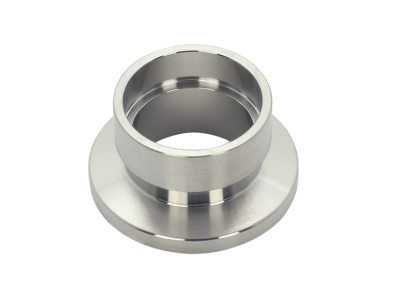

ISO-KF Weld Socket Flange, NW16, 0.75 in. Tube O.D., 304 Stainless Steel
The 100318321 Weld Socket Flange features a NW16 size ISO-KF vacuum flange and is designed for 3/4 inch outside diameter vacuum tubing. This 304 stainless steel weld socket is self aligning, features standard tube weld prep., and is also suitable for butt welding. Series 31 ISO-KF vacuum components are designed for use at subatmospheric pressure and use standard interface dimensions defined by the International Standards Organization (ISO) allowing them to be interchangeable with other ISO-KF compliant components. Series 31 components can be used as modular building blocks to create vacuum piping systems. IS-KF flanges are "sexless" with a symmetrical seal so that so that components are rotatable. ISO-KF vacuum flanges are joined by inserting a centering ring between the two flange faces, and securing them with a flange encompassing clamp.
Specifications
- Component TypeWeld Socket Flange
- SeriesSeries 31
- Material304 Stainless Steel
- Flange TypeISO-KF
- Flange SizeNW16
- Tube OD0.75 in.
- Length0.5 in. (12.7 mm)
- Inner Diameter0.76 in. (19 mm)
- Outer Diameter0.87 in. (22 mm)
- A22 mm
- B19 mm
- C17 mm
