Metal Wall Vacuum Hose, NW25 ISO-KF, 500 mm Length, 0.15 mm Hose Wall

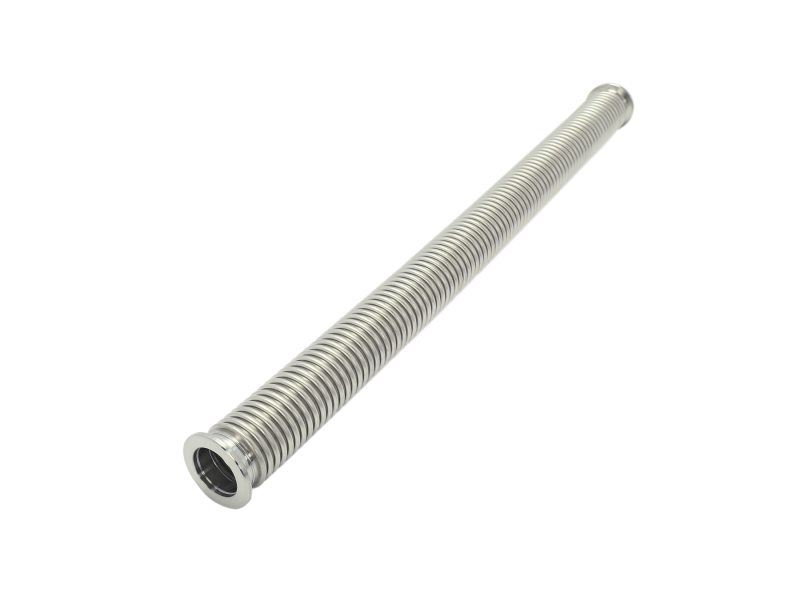

The 100317423 Thin Metal Wall Vacuum Hose is 19.69 inch (500 mm) in length with size NW25 ISO-KF vacuum flanges on each end. This unsheathed vacuum hose has a thin 0.06 in. (0.15 mm) stainless steel hose wall with a 1 3/8 inch static bend radius and can be compressed to a 12.3 in. (313 mm) length. Series 31 thin stainless steel wall vacuum hose can be used in rough piping applications.
Specifications
- Component TypeMetal Wall Vacuum Hose
- SeriesSeries 31
- MaterialStainless Steel
- Flange TypeISO-KF
- Flange SizeNW25
- Wall Thickness0.006 in. (0.15 mm)
- Static Bend Radius1.375 in.
- Spring Rate7.3 lb/in.
- Free Length500 mm
- Compressed Length313 mm
- A500 mm
- B313 mm
