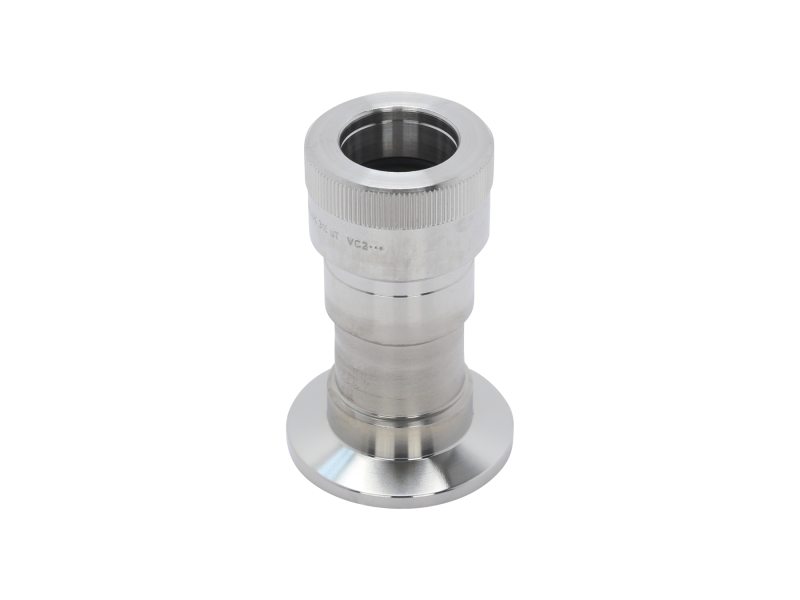

ISO-KF Flange Adapter, NW25 to 0.75 inch O.D. Pipe Compression Fitting
The 100316913 ISO-KF Flange Adapter is used to convert a NW25 size ISO-KF vacuum flange to a 3/4 inch outer diameter pipe compression fitting. This Series 31 adapter is made with stainless steel and includes a Viton O-ring seal. The compression fitting can be tightened by hand and features compression connect for pipe insertion.
Specifications
- Component TypePipe Compression Fitting Adapter
- SeriesSeries 31
- MaterialStainless Steel
- Seal MaterialViton
- Flange TypeISO-KF
- Flange SizeNW25
- Tube OD0.75 in.
- Length63.5 mm
- Inner Diameter16 mm
- A16 mm
- B63.5 mm
- C24 mm
