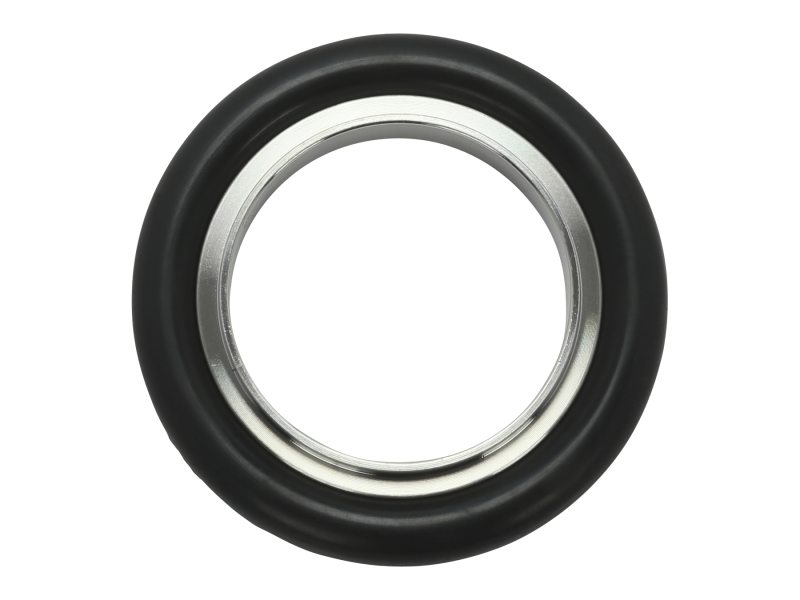

Centering Ring Seal Assembly, ISO-KF, NW25, Viton O-ring, 304 S.S.
The 100312703 Centering Ring Assembly is designed for NW25 size ISO-KF vacuum flanges and features a Viton® O-ring and 304 stainless steel construction. Centering rings are inserted between two same size ISO-KF flange faces to provide the vacuum seal when joining them. The included Viton O-ring is recommended when high temperature, chemical resistance or long installed life make them beneficial. Series 31 ISO-KF vacuum components are designed for use at subatmospheric pressure and use standard interface dimensions defined by the International Standards Organization (ISO) allowing them to be interchangeable with other ISO-KF compliant components.
Specifications
- Component TypeCentering Ring
- SeriesSeries 31
- MaterialStainless Steel
- Seal MaterialViton
- Flange TypeISO-KF
- Flange SizeNW25
- Maximum Temperature180°C
