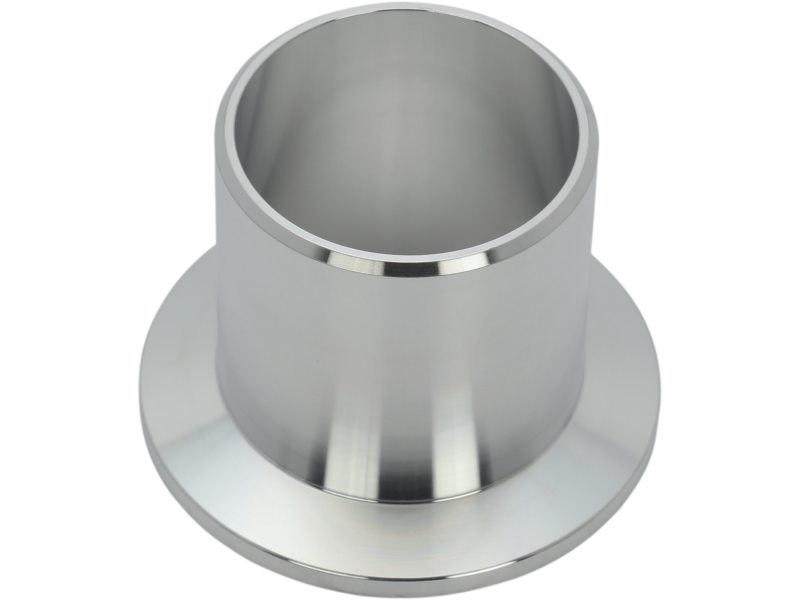

ISO-KF Weld Stub Flange, NW40, 1.5 in. Tube OD, 1.58 in. Length, Aluminum
The 100310205 Long Weld Stub Flange is made with Type 6061T6 aluminum and designed to be buttwelded to 1.5 inch OD vacuum tubing. This weld stub features a size NW40 ISO-KF vacuum flange and has a 1.58 in. (40 mm) overall length. Series 31 ISO-KF vacuum components are designed for use at subatmospheric pressure and use standard interface dimensions defined by the International Standards Organization (ISO) allowing them to be interchangeable with other ISO-KF compliant components. Series 31 components can be used as modular building blocks to create vacuum piping systems. IS-KF flanges are "sexless" with a symmetrical seal so that so that components are rotatable. ISO-KF vacuum flanges are joined by inserting a centering ring between the two flange faces, and securing them with a flange encompassing clamp.
Specifications
- Component TypeWeld Stub Flange
- SeriesSeries 31
- MaterialAluminum
- Flange TypeISO-KF
- Flange SizeNW40
- Tube OD1.5 in.
- Wall Thickness0.083 in.
- Length40 mm
- A38.1 mm
- B2.1 mm
- C40 mm
