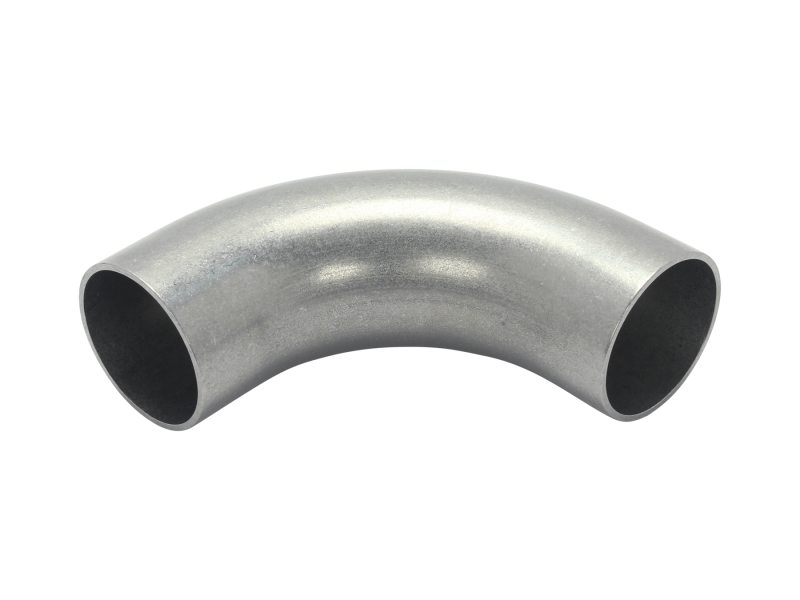

90 Degree Elbow Fitting, Buttweld, 1.5 in. O.D. with Tangents, 304 SS

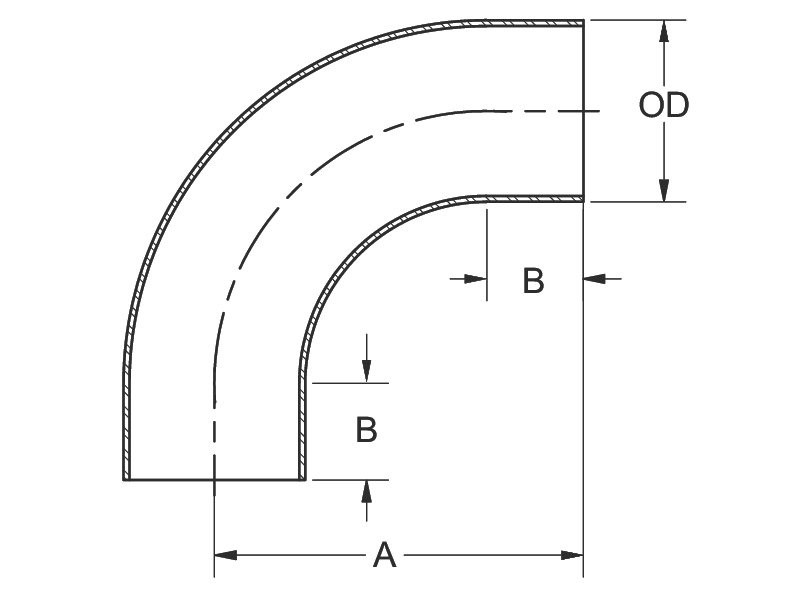

The 1002390WT150 Buttweld 90° Elbow Fitting has a 1.5 inch outside diameter and a 0.065 in. wall thickness. 0.69 inch tangents to the elbow radius are included on each end. All elbows feature an industry standard radius of 1.5 times the tubing outside diameter. Series 23 vacuum buttweld fittings are constructed with welded, drawn, and annealed 304 stainless steel tubing for applications where minimizing the number of sealed joints is critical. Stainless steel vacuum tubing offers low outgassing under vacuum conditions, is chemically resistant, annealed for consistent leak free welding, and has minimized corrosion concentration points. Series 23 fittings are designed for internal socket type welding or external buttwelding.
