Sorry, this product is no longer offered for sale.

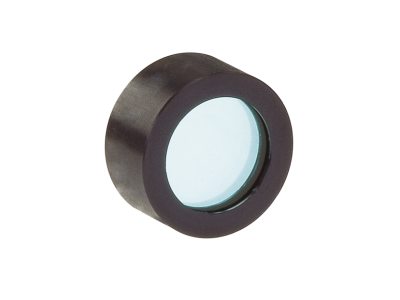

Optical Filter, Laser Line, 12.7 mm, 488±2 nm Center, 10±2 nm FWHM
The 05LF10-488 Laser Line Filter is 12.7 mm diameter with a center wavelength of 488 ± 2 nm, and full width half max of 10 ± 2 nm. It is optimized to block X-ray to Far IR wavelengths. Laser Line Filters are ideal for transmitting laser light while suppressing ambient light. The center wavelength shifts linearly with temperature less than 0.02 nm/°C. The highly reflective side of the filter should generally face the source, minimizing the thermal load on the blocking glass and epoxies.
Specifications
- TypeLaser Line Filter
- Center Wavelength488 nm
- Center Wavelength Tolerance±2 nm
- FWHM10±2 nm
- Effective Index of Refraction2
- SizeØ12.7 mm
- Size Tolerance+0/-0.1 mm
- Thickness7.62 mm
- Surface Quality80-50 scratch-dig
- Minimum Peak Transmission50%
- Humidity ResistancePer MIL-STD-810C, method 507, procedure 1, modified for 5 cycles
- Laser TypeArgon-Ion
- BlockingXray–Far IR
- Clear Aperture8.7 mm
- Temperature Range-50°C to +80 °C
- Wavelength Shift with Temperature<0.02 nm/°C
- Cleaning
