Ultrafast Pump Mirror, High Reflecting, 12.7 mm, 50 EFL, 710-890 nm

The 05BV10UF.20 Ultrashort Pulses High Reflecting Pump Mirror is a precision polished, 0.5 inch (12.7 mm) diameter, concave, N-BK7 substrate with an effective focal length of 50 mm. It's UF.20 coating is optimized for reflection at 710 to 890 nm, and pump transmission at 488 to 532 nm. This mirror is intended for use as a high reflector while allowing transmission of an Argon or frequency doubled Nd:YAG pump laser. A modified single stack dielectric coating design features maximum bandwidth and minimum pulse dispersion. A broadband visible anti-reflection coating is deposited on the mirror's second surface to allow maximum transmission of pump laser energy in the 488 to 532 nm range.

Specifications

Technical Specs

Wavelength Range
710-890 nm
Wavelength Region
NIR
Mirror Shape
Concave
Diameter
12.7 mm
Effective Focal Length (EFL)
50 mm
F/#
3.9
Material
N-BK7
Radius of Curvature (R)
-100 mm
Coating Type
Broadband Ultrafast Pulse Coating
Coating Code
Front: UF.20
Back: AR.14
Angle of Incidence
0-15°
Reflectivity

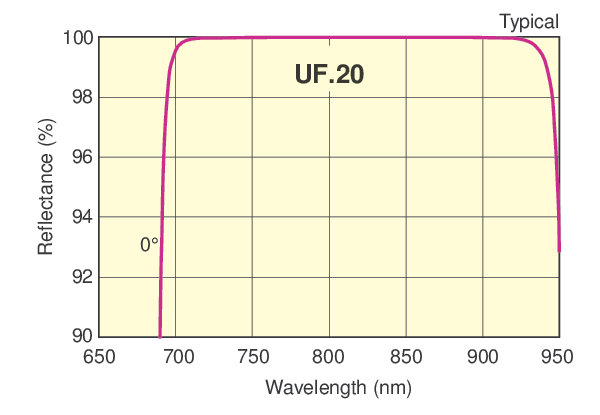

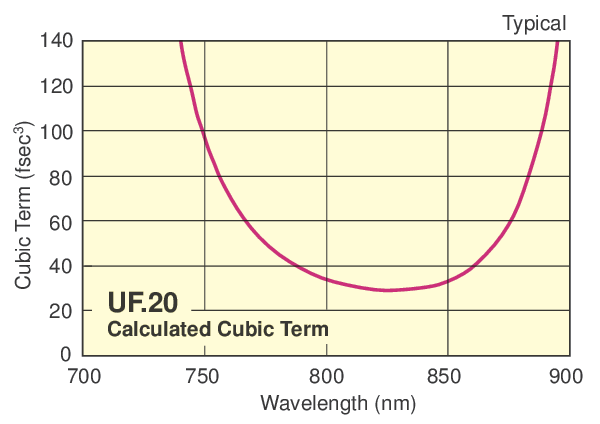

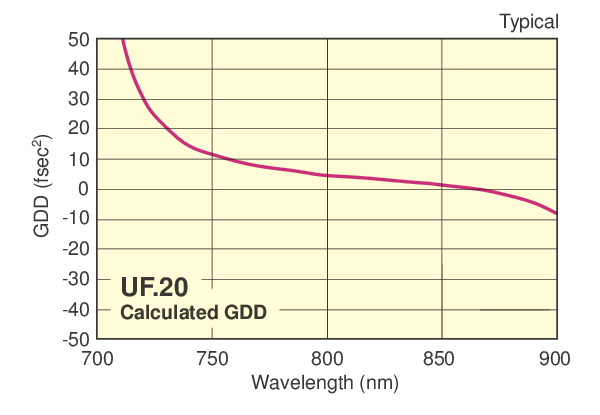

UF.20: R_s, R_p>99% @ 710–890 nm
AR.14: T_s, T_p>99% @ 430–700 nm
Damage Threshold
0.144 J/cm² @ 800 nm, 49 fs,100 Hz

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Back Surface
430-700 nm (AR.14)
Edge Thickness (T<sub>e</sub>)
9.53 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Radius of Curvature
-100 mm
Cleaning
See How to Clean Optics

Wavelength Range
710-890 nm
Wavelength Region
NIR
Mirror Shape
Concave
Diameter
12.7 mm
Effective Focal Length (EFL)
50 mm
F/#
3.9
Material
N-BK7
Radius of Curvature (R)
-100 mm
Coating Type
Broadband Ultrafast Pulse Coating
Coating Code
Front: UF.20
Back: AR.14
Angle of Incidence
0-15°
Reflectivity
UF.20: R_s, R_p>99% @ 710–890 nm
AR.14: T_s, T_p>99% @ 430–700 nm
Damage Threshold
0.144 J/cm² @ 800 nm, 49 fs,100 Hz

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Back Surface
430-700 nm (AR.14)
Edge Thickness (T<sub>e</sub>)
9.53 mm
Thickness Tolerance
±0.25 mm
Diameter Tolerance
+0/-0.25 mm
Chamfers
0.25-0.76 mm face width
Chamfers Angle Tolerance
45° ±15°
Radius of Curvature
-100 mm
Cleaning
See How to Clean Optics
