05BC16PC.6 Cube Beamsplitter

The 05BC16PC.6 Laser Line Polarizing Cube Beamsplitter provides efficient narrowband polarization for higher power lasers. This polarizer consists of a pair of precision 1/2 inch (12.7 mm) right-angle prisms carefully cemented together to minimize wavefront distortion. The hypotenuse of one of the prisms is coated with a multilayer dielectric polarizing beamsplitter coating optimized for the 780 nm laser line. The four faces are antireflection coated with a multilayer dielectric coating to minimize surface reflection losses. An unpolarized beam is split into two orthogonal, linearly polarized components. P-polarized light is transmitted, while s-polarized light is reflected, both with negligible absorption. The extinction ratio is better than 1000:1. This cube is recommended for use in pulsed laser systems and for purifying polarization in multimode, high-power lasers.

Specifications

Technical Specs

Wavelength Range
780 nm
Size
12.7 x 12.7 x 12.7 mm
Shape
Cube
Material
Grade A N-BK7
Coating Type
Laser line polarizing
Coating Code
PC.6
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±3°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.8%
Reflected Beam Deviation
90° ±5 arc min

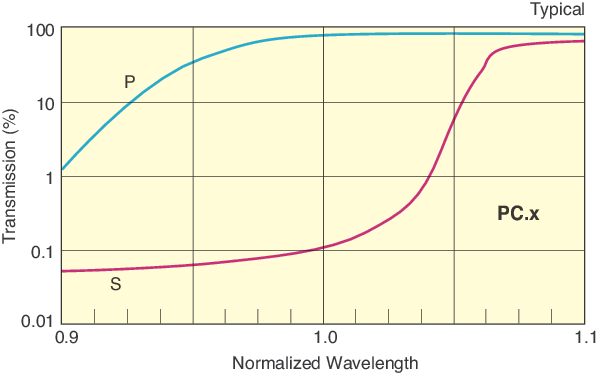

Transmission
T_p >95%
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >1,000:1
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse @ 532 nm, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Wavelength Range
780 nm
Size
12.7 x 12.7 x 12.7 mm
Shape
Cube
Material
Grade A N-BK7
Coating Type
Laser line polarizing
Coating Code
PC.6
Antireflection Coating
Multilayer broadband dielectric
Angle of Incidence
0°±3°
Orientation
To avoid damage, beam should enter prism marked with a dot
Reflection
R_s >99.8%
Reflected Beam Deviation
90° ±5 arc min
Transmission
T_p >95%
Transmitted Beam Deviation
≤5 arc min

Extinction Ratio
T_p/T_s >1,000:1
Wavefront Distortion
≤λ/4 at 632.8 nm over the clear aperture
Surface Quality
20-10 scratch-dig
Surface Flatness
≤λ/4 at 632.8 nm
Damage Threshold
2000 W/cm² CW, 1 J/cm² with a 10 nsec pulse @ 532 nm, typical
Clear Aperture
>80% of central dimension
Size Tolerance
±0.254 mm
Operating Temperature Range
-50 to 90°C
Durability
MIL-C-675C, moderate abrasion million cycles
Cleaning
See How to Clean Optics

Resources & Downloads

Other

05BC16PC.6 RoHS Certificate(264.4 kB, PDF)
05BC16PC.6_ROHS2-2021.pdf(279.7 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
05FC16PB.5Cube Beamsplitter, Polarizing, 12.7 mm, 620-1000 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$332
05BC15PH.3Cube Beamsplitter, Polarizing, High Energy Nd:YAG, 12.7 mm, 532 nm	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,036
10BC16PC.6Cube Beamsplitter, Polarizing, 25.4 mm, 780 nm Laser Line	UNIVERSAL		$442
05BC16NP.6Cube Beamsplitter, Non-Polarizing, 12.7 mm, 780 nm Laser Line	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$410

Compatible

Description	Compatibility	Avail.	Price
UGP-1Gimbal Prism Mount, ULTIMA^®, 1 in., 100 TPI Adjustment Screws	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$457

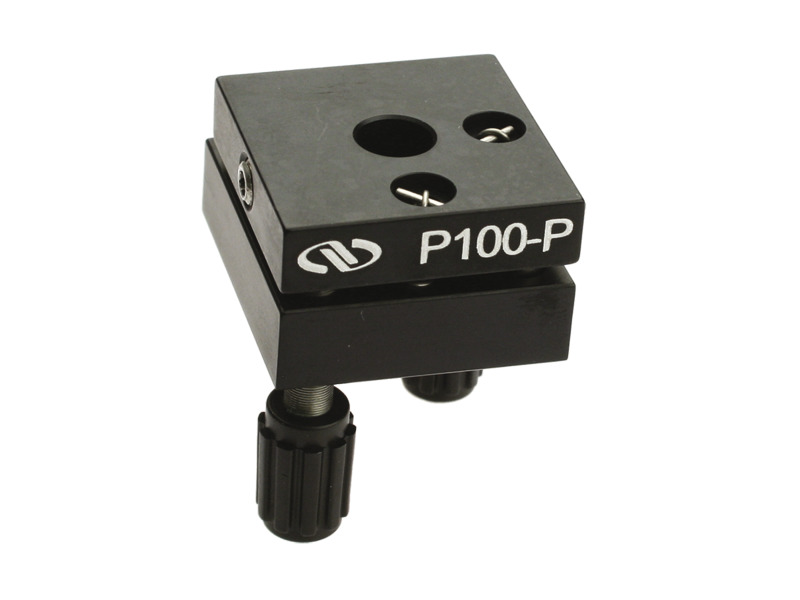

P100-PPlatform Optical Mount, Miniature, 1.0 in., 2 Knob Adjustment, 8-32	IMPERIAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$78
UPA-CH.5Cube Beamsplitter Holder, 0.5 in. Cubes, For 0.5 in. Mirror Mounts	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$79
CH-0.5Cube Beamsplitter Holder, 0.5 in. Cubes, 1.063-20 Threaded Mounts	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$169

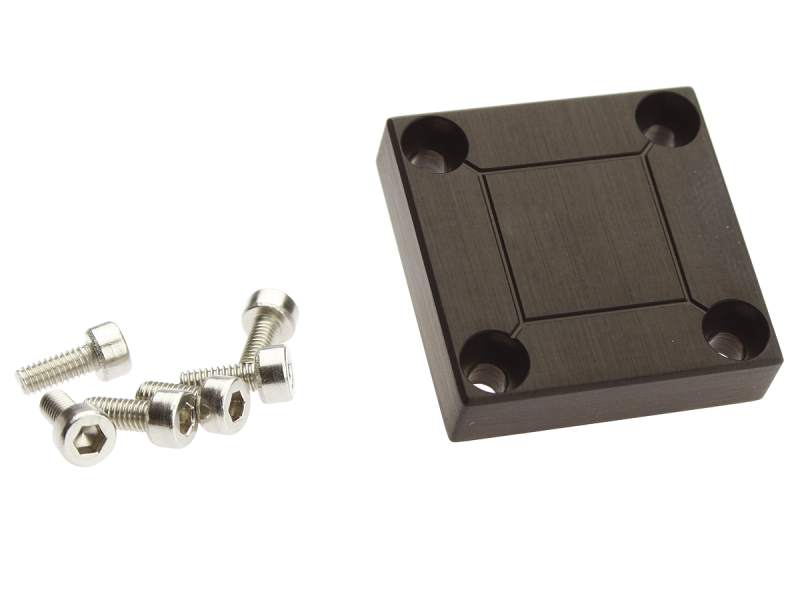

UGP-KIT-1UGP Adapter Kit, 0.50in. (12.7mm) Cube Riser	UNIVERSAL	FREE 2-day shipping on thousands of products on Newport.com Learn More	$44
